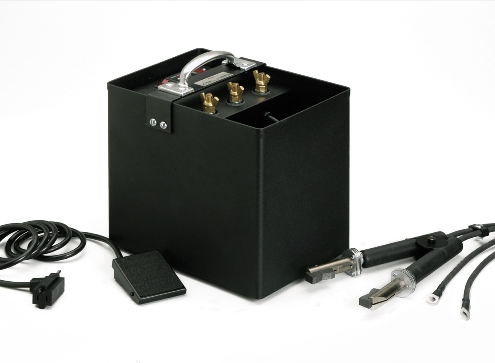

Ideal system for plumbing, HVAC, cable work, battery terminals, motor leads and stator applications. Brazes up to 5/8″.

Features & Benefits
• Concentrated heat will eliminate thermal damage of critical components that are adjacent to the soldered area.
• Instant heat cuts down on energy consumption and electrodes will last twice as long.
• 3 tap-selectable settings. The highest output unit in the American Beauty family.
• Heavy-Duty Plier Style Handpiece offers a good compromise between handpiece weight and longevity.

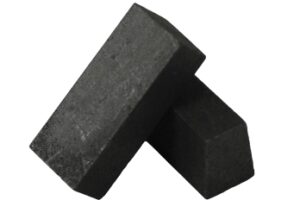

• Carbon block electrodes can be easily notched/shaped, allowing the user to customize the handpiece to their specific application.
• Footswitch permits hands-free power while eliminating the problems of sparking
• Easy drop ship from American Beauty

Specifications:
• Wattage: 3000 watts
• Selectable power outputs: 1000, 2000 and 3000w (4.0 to 10.1 VAC)
• Opening between Electrodes: 3 in / 7.62 cm
• Electrode Size/Diameter: .50 in / 1.27 cm
• Connection Type: ring terminals
• Size: 12.75″ x 12.50 x 14″
• Weight: 69 lbs.
• RoHS Compliant

Suggested Applications (from our customers):
• Solder thin wall copper pipe from 1/4″ up to 3″ Diameter
• Braze thin wall copper pipe up to 3/4″
• Solder terminations for battery cable assembly
• Brazing thin wall copper tubing up to 3/8″
• Soldering power cable assemblies
• Brazing repairs for Refrigeration Sealed System
