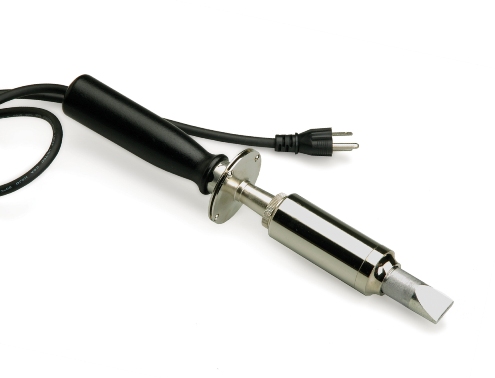

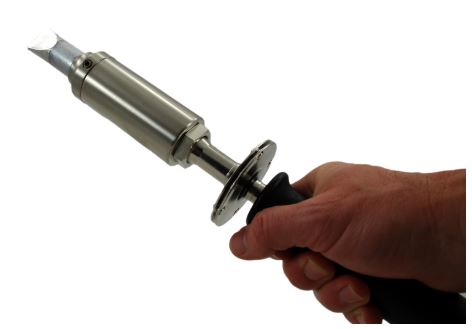

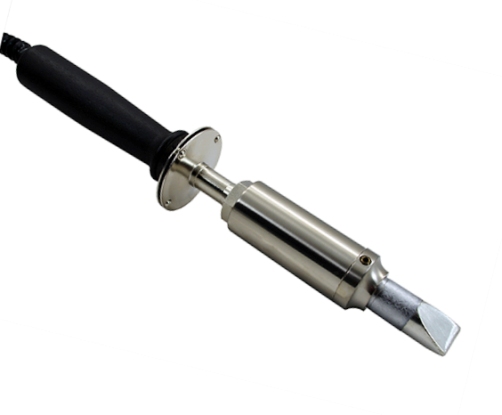

American Beauty 3178-300 iron is ideal for heavy soldering jobs and production-line environments. Stand and soldering tip included.

3178-300 Features:
• Ideal for heavy soldering applications and production applications
• Ni-Chrome compression-wound heating elements
• Non-slip rubberoid finish handle provides a sure grip as well as themal and electrical insulation
• Iron-Clad plug-style tip design for superior heat transfer and easy cleaning.
• Modular construction allows for easy replacement of elements and parts
• Easy drop ship from American Beauty

3178-300 Specifications:
• 300-watts (120v)
• Tip included: 7/8″ chisel-style (#45C)

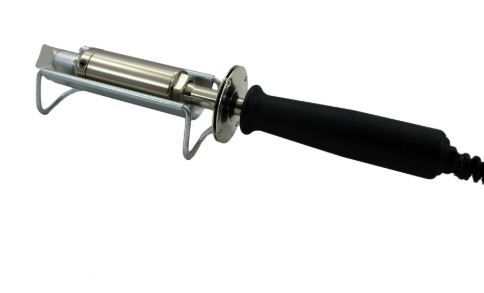

• Iron stand included
• Max. tip temp. 1000º F (538º C)
• Length: 14.375″ (36.5cm)
• Weight: 3-1/2 lbs. (1.59kg)
• RoHS compliant
• Replacement element available (no. 9277-300)

High Voltage Option:
• 220-240v iron available upon request (info@concorde-electronics.com / Tel: 201-488-7474)

Recommended Applications (from our customers):
• Testing fire/heat detectors in no-flame areas such as gas stations
• Melt self-adhesive plastic onto itself
• Solder connections during the manufacturing of motors
• Soldering 20-gauge and thinner copper gutters, awnings, roofs and flashing
• Soldering downspouts to 1/2 round copper gutters
• Solder sheet metal
• Soldering sculptural building/tool making
• Heating bolts
• Solder copper wire connections
• Soldering copperfoil, splicing high-voltage wire cables
• Reflowing solder for hermetic sealing of instrumentation
• Assembly copper, lead coat copper and brass lanterns
