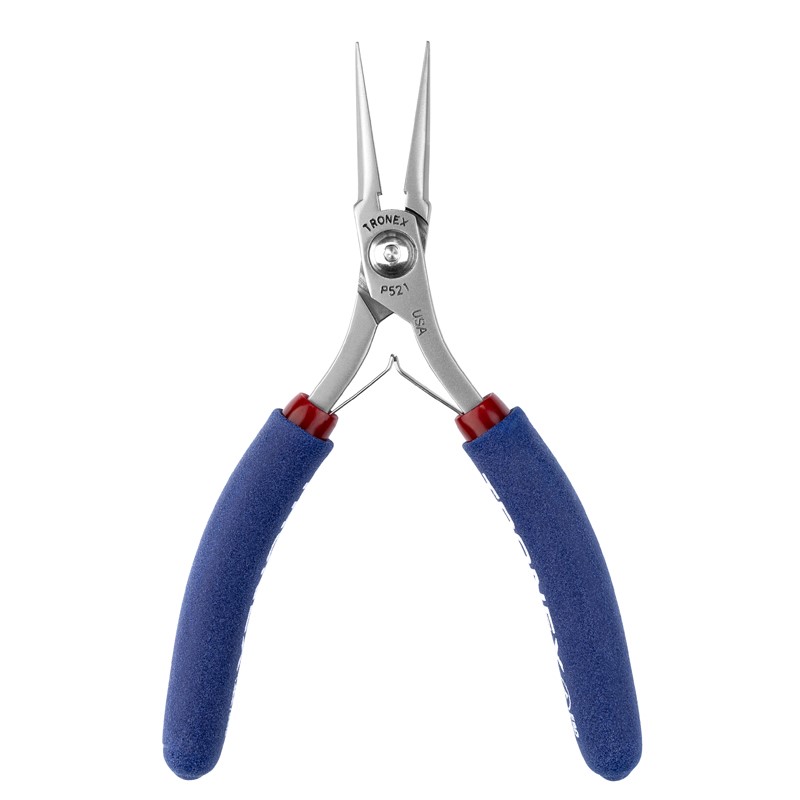

Tronex P521

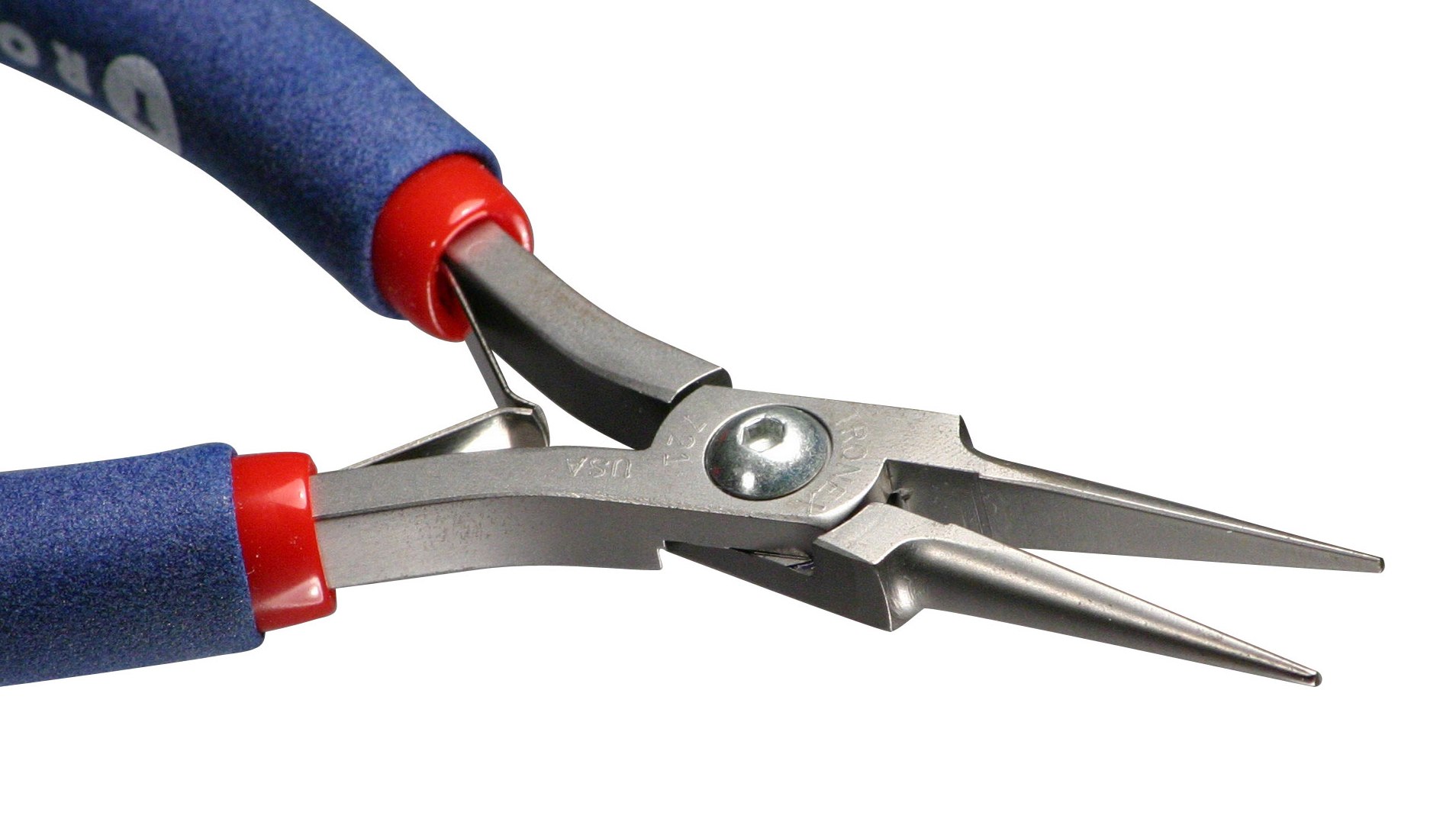

Extremely durable, hardened steel tool is ideal for electronic assembly and rework applications as well as fine jewelry work and repair. The cone shape can be used for precision loop forming of leads or wire. Pliers feature a very fine tip, flat faced inner jaws .  The long, thin nose, machined in thin half cones, can easily reach into difficult-to-access areas and the smooth jaws will hold an object firmly without damage.

Tronex P521 Features
• Ideal for “free forming” precision loops of wire or leads
•  Thin profile can reach into difficult-to-access areas with ease

• High-grade alloy steel for strength and durability
• Ideal for fine electronics work or jewelry making
•  Smooth jaws will hold small items firmly and without damage
• Slightly rounded inner jaw edges
• Machined tool edges

• ESD-safe double-sheathed cushion grips

• Bearing ring lap joint for superior performance extending the life of the tool.
• Non-protruding leaf spring will not “catch”
• Hand-crafted, polished head

Recommended Applications
• Electronics
• Jewelry Making

Tronex P521 Specifications

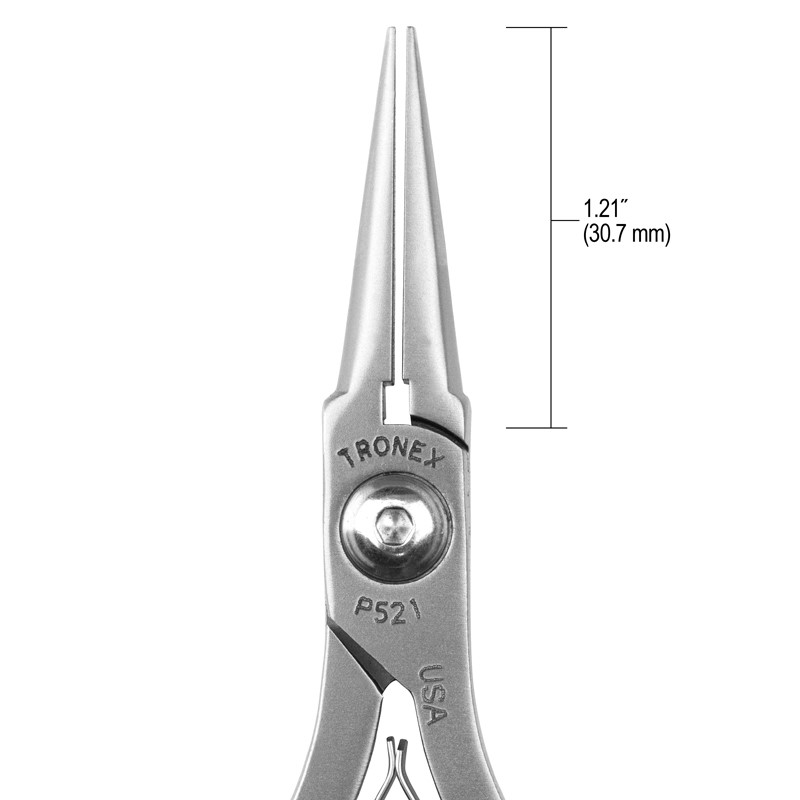

• Jaw length: 1.21″ (30.7mm)
• Tip diameter: .030″ x .030″
• 5.4″ overall length

• Rockwell Hardness:  32-33 HRC

• ESD-safe (RTT Resistance: 11 ohms tested per ANSI/ESD STM11.13 Two-Point Probe, resistance measurement for static dissipative materials)
• Option: Longer, ergonomic handle 7″ (Part No. P721)
