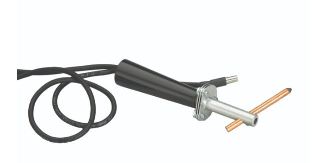

American Beauty 10511 1/4″ Probe-Style Hand Piece

Hand pieces are designed and built to provide absolute performance in even the toughest environments. By generating heat instantaneously and right at the point of contact, the technician is able to easily handle the historically difficult soldering jobs.

NOTE: A return lead is required for proper operation of a single probe handpiece. The most frequent return lead used with this handpiece is #10512.

Features:
• Made in the USA
• Copper-coated carbon electrodes can be easily notched/shaped, allowing the user to customize the handpiece to their specific application.

• Adapter accepts electrodes either straight or at an angle. Helps provide versatility and ergonomic comfort.
• Heat deflecting baffles Helps eliminate excessive heat buildup in the handle.
• Contoured Bakelite handle provides a smooth, comfortable grip.
• Easy drop ship from American Beauty

Specifications:
• Connection Type: Tapered Pins
•  Electrode Size/Diameter: 1/4 in. (.25 in / 0.64 cm)
• Replacement Electrodes: #10549 1/4″ Carbon
• Product Length: 8 in / 20.32 cm
• Product Width: 2.00 in / 5.08 cm
• Product Height: 2.00 in / 5.08 cm
• Package Weight .65 lbs / 0.29 kg
• Country of Origin: US
• Harmonization Code: 8515.11.0000
• RoHS Compliant
• IEC 60335-1, Edition 5.1, 2013-12
• WEEE Compliant
• CE Certified

High Voltage Option (220v):

220v available upon request (Contact Concorde for pricing/availability.  Tel: 201-488-7474 • E-Mail: info@concorde-electronics.com)

Optional Accessories:
• Optional: #10512 Return Lead with Standard Clamp or #10512A Return Lead with Alligator Clip
• Optional: #105PTM Resistance Soldering Precision Timer Module
• Optional: #105V12 Grounding Vise for Holding Parts Hands-Free
