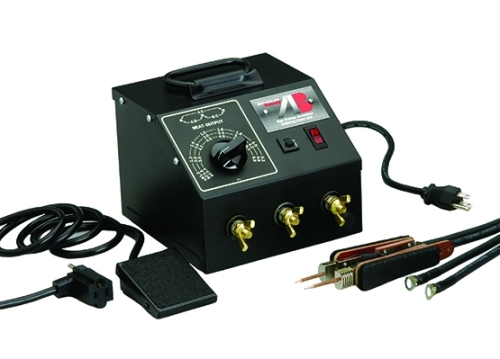

Resistance soldering will smash operational bottlenecks with concentrated heat that will reduce solder time and improve solder joint quality.

Features & Benefits:
• Concentrated heat will eliminate thermal damage of critical components that are adjacent to the soldered area.
• Instant heat cuts down on energy consumption and electrodes will last twice as long. Ships via UPS.
• 23 unique settings provides intense power required to overcome difficult heat sinks.
• Light-weight, palm-sized hand piece with comfort grip padding minimizes operator fatigue.
• Copper-coated, stainless steel electrodes can be easily bent, allowing the user to customize the handpiece to their specific application.
• Footswitch permits hands-free power while eliminating the problems of sparking
• Easy drop ship from American Beauty

Specifications:
• Wattage: 1800 watts
• Opening between Electrodes: .625 in / 1.59 cm
• Electrode Size/Diameter: .125 in / 0.32 cm
• Connection Type: Ring Terminals
• Replacement electrode: 10594
• Size: 12.25″ x 12.25 x 10.75″
• RoHS Compliant

Suggested Applications (from our customers:
• Soldering terminations into large, close-nested, military connectors
• Restoration of O-scale brass trains
• Brazing small points/connections at lower brazing temperatures
• Soldering antennas for new 4G network
