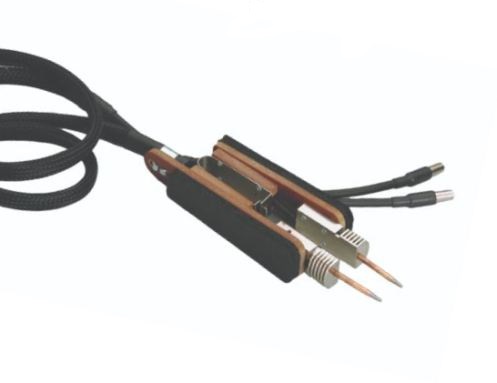

American Beauty 105127 Medium Tweezer-Style Soldering Handpiece.
American Beauty hand pieces are designed and built to provide absolute performance in even the toughest environments. By generating heat instantaneously and right at the point of contact, the technician is able to easily handle the historically difficult soldering jobs.

Features & Benefits
• Made in the USA
• Stainless Steel Electrodes
• Copper-coated, stainless steel electrodes can be easily bent, noted, ground or flattened allowing the user to customize the handpiece to their specific application.

• The rugged design is specifically for soldering applications like motor stators, antenna leads, semi-rigid and flexible co-axial cable assemblies and wire terminations up to 1/4″ diameter.

• Canvas-Electric Paddles Provide excellent electrical and thermal insulation during use. Always adhere to proper, safe operating requirements to prevent any potential thermal damage.

• Soft Cushion Padding For increased comfort and a secure grip when performing highly repetitive soldering applications.

• Easy drop ship from American Beauty

Specifications:
• Connection Type: Tapered Pins
• Opening between Electrodes: .625 in / 1.59 cm
• Electrode Size/Diameter: 1/8 in (.125 in / 0.32 cm)
• Replacement Electrodes: 10594 1/8″ stainless steel
• Product Length: 7 in / 17.78 cm
• Product Width: 3.00 in / 7.62 cm
• Product Height: 3.00 in / 7.62 cm
• Country of Origin: US
• Harmonization Code: 8515.11.0000
• RoHS Compliant
• IEC 60335-1, Edition 5.1, 2013-12
• WEEE Compliant
• CE Certified
• User Manual

High Voltage Option (220v):
220v available upon request (info@concorde-electronics.com /Tel: 201-488-7474)
