American Beauty offers the most advanced and complete line of resistance soldering systems available anywhere in the world. Here are just a few of the advantages that you will find with resistance soldering systems:
• Smash Operational Bottlenecks – Concentrated heat reduces solder time many times over.
• Improve Solder Joint Quality – Poor solder joints are often the result of insufficient heat throughout the joint, creating weak spots.
• Eliminate Thermal Damage – Traditional soldering methods introduce too much heat into surrounding areas damaging critical components or desoldering of previously soldered joints.
• Reduce Liability – Light-weight handpieces cool within seconds greatly reducing likelihood of repetitive strain injury and virtually eliminating the burn risk for the user.
• Solder in Tight Spots – Versatile systems allow easy access to restricted areas.
• Cut down on Energy Consumption – Instant heat means you’re not paying to heat a soldering station all day long.
• Save on Maintenance and Consumables – Electrodes last twice as long as soldering tips and don’t require constant rewetting.

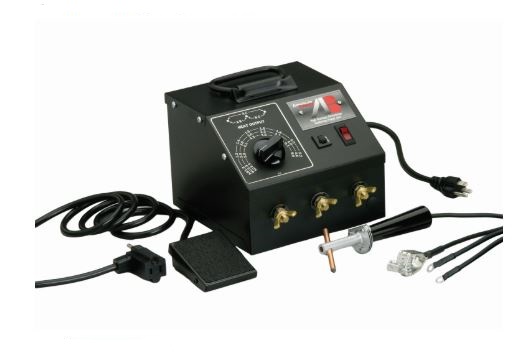

Features & Benefits 105H9:

• 1,800 Watts (6.9 VAC) of Power with 23 unique settings (Warning ~ Do not switch power settings while under load.) provides intense power required to overcome difficult heat sinks.

• Contoured Bakelite handle Provides a smooth, comfortable grip. Adapter accepts electrodes either straight or at an angle Helps provide versatility and ergonomic comfort.

• Copper-coated carbon electrodes can be easily notched/shaped, allowing the user to customize the handpiece to their specific application.

• Footswitch permits hands-free activation of power, vastly improving control of your applications and virtually eliminating the sparking that is common with other brands of resistance based systems.



Suggested Applications:

• Brazing flat copper tubing for a hermetic seal

• Soldering heavy duty terminals

• Building brass stands for store display

• Attaching heavy duty leads

Specifications:

• Connection Type Ring Terminals
• Wattage 1800 watts
• Electrode Size/Diameter .25 in / 0.64 cm
• Option: Available in a 220-240 VAC. Contact Concorde for price and availability
