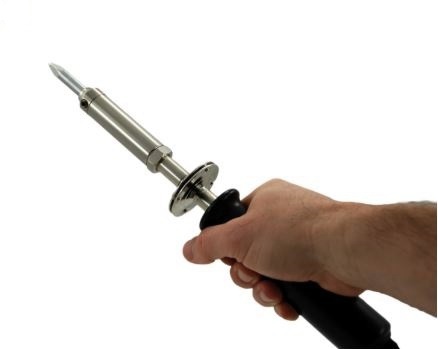

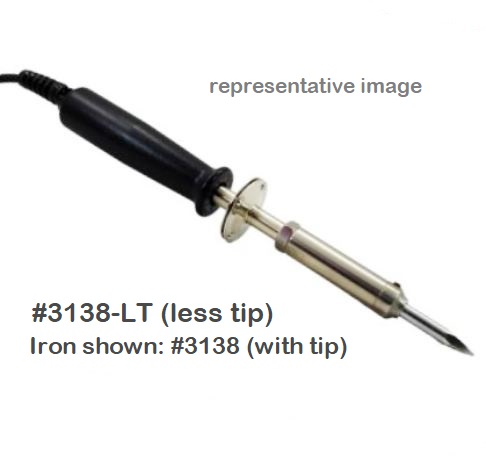

American Beauty 3138 soldering iron is ideal for general production, marine, aviation, railroad, sheet metal and maintenance work. Representative Image: iron shown with tip. Tip not included.

3138LT-100 Features:
• Ideal for heavy soldering applications and production applications
• Ni-Chrome compression-wound heating elements
• Iron-clad, pure copper core tip for lead-free compatible soldering
• Hardwood handle provides superior thermal and electrical insulating properties
• Plug-style tip design provides superior heat transfer and easy cleaning
• Modular construction allows for easy replacement of elements and parts

3138-100 Specifications:
• 100-Watt (120v)
• Tip not included
• Standard tip diameter: 3/8

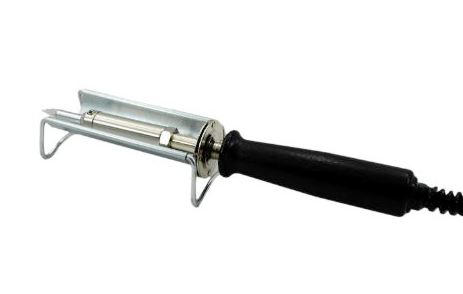

• Iron stand included
• Length: 13″
• 1-3/4 lbs.
• RoHS compliant
• Optional 43-Series replacement soldering tips available
• Replacement element available (no. 9273-100)
• 220-240 v iron available upon request (info@concorde-electronics.com / Tel: 201-488-7474)

Suggested Applications
• Stained glass
• Cover to enclosure on electronic assemblies for aircraft applications
• Solder copper shield for MRI
• Melt plastic bubbles
• Solder small points/connections and wire terminations
• Plumbing (sweating) thin-walled copper
• Join sheet metal seams in zinc coutertops
