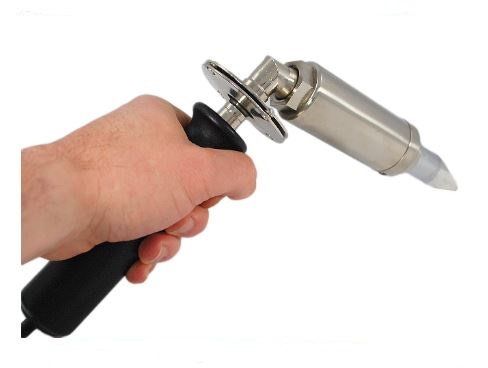

The near 90 degree angle in the soldering iron casing allows the user to operate the iron from an ergonomically comfortable position, reducing tension in the hand and wrist.

Features & Benefits
• Ideal for heavy soldering applications and production applications
• Ni-Chrome Compression Wound Heating Elements for reliable temperature control
• Iron-Clad plug-style tip design for superior heat transfer and easy cleaning.
• Hardwood handle provides superior thermal and electrical insulating properties and durability.
• Modular construction allows for easy cleaning and replacement of parts
• Easy drop ship from American Beauty

Specifications
• Wattage 300 watts
• Maximum temperature 1050° F
• Tip included: 45C Chisel
• Tip Diameter: 7/8 in
• Stand included
• AMP Draw: < 3 Amp
• Size: 4 in x 4 in x 16 in
• Weight: 3.3 lbs / 1.50 kg
• RoHS Compliant

High Voltage Option:
• Available in a 220-240 VAC upon request (info@concorde-electronics.com / Tel: 201-488-7474)
