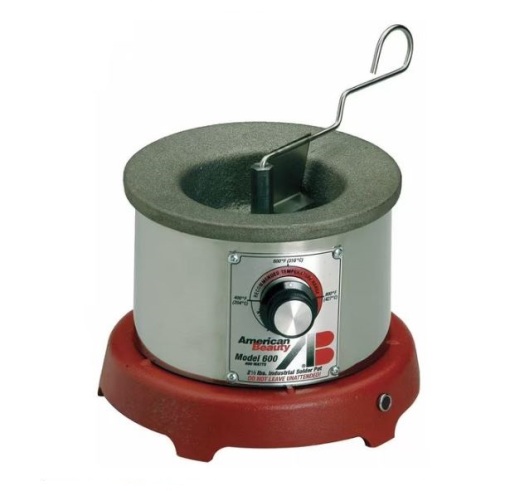

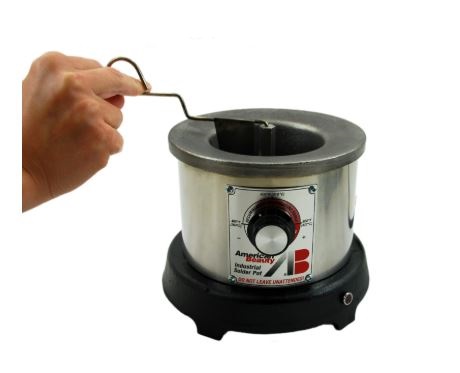

No. 600 Mid-Capacity Solder Pot is suitable for lead-free operation.

Features & Benefits:
• Grey Cast Iron Crucible is chemically stable and highly resistant to the corrosive nature of lead-free solders.
• Can tin the ends of stranded wire leads, pre-tin small electrical parts, re-tin soldering iron tips and dip solder small printed circuit boards.
• Internal dross is moved to lip where it cinders away.
• Dross skimmers are safer and more efficient than paddles, spoons and sticks that contaminate solder and lower temperature.
• Made in the USA
• Easy drop ship from American Beauty

Suggested Applications (from our customers):
Users of this product have stated that they use it for several jobs which include but are not limited to:
• Dip soldering small assemblies
• Pre-tinning PTFE 14 AWG to 32 AWG
• Dip soldering 4 & 6 AWG wire with terminal lugs
• Dip soldering small traces for sonar manufacturing
• Pre-tinning medical cable assemblies
• Dip soldering Litz wire
• Pre-tinning wires & cables

• Also available with Ceramic Coated Crucible (for Lead – Free Solders).  See Model 600C

American Beauty 600 Specifications:
• Crucible Material: Cast Iron
• Solder capacity: 2-1/2 lb.
• Net Volume: Approx. 8 oz.
• Temperature range: of 350 to 850º F (176 to 454º C).
• Temperature Variation from Set Point: 50
• Solder Bath Dimensions: 3-1/2″ diameter x 1-1/2″ depth
• 600 watts
• Product Length: 7.5 in / 19.05 cm
• Product Width: 7.0 in / 17.78 cm
• Product Height 5.5 in / 13.97 cm
• Country of Origin: US
• Harmonization Code: 8515.11.0000
• RoHS Compliant
• WEEE Compliant

High Voltage 220-240V Option:
• 220v available upon request (Contact Concorde: Tel 201-488-7474 • Email: info@concorde-electronics.com)
