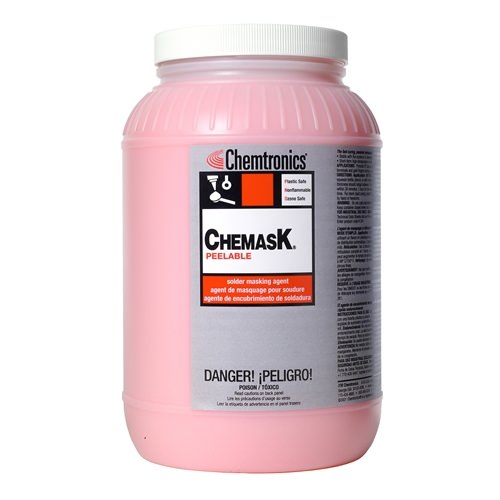

One of our most popular solder masks. The fast curing, peelable temporary solder masking agent.

Chemask® Solder Masking Agents protect PC boards, plated thru-holes, contacts, pins, posts, terminals and gold fingers during wave soldering. CM1 provides short-term high-temperature protection from molten solder.

Chemask CM1 Features:
• Non-contaminating & non-corrosive
• Latex formula is compatible with flux systems and stable with cleaning solvents
• Dry tack-free in 15 minutes
• Fully cured in 30 minutes
• Wave soldering: protect pc boards, plated thru-holes, pins, posts, terminals and gold fingers
• Conformal coating process: protect switches, pins, posts, contacts and edge connectors
• Apply with automated dispensers, hand dispensers or stencils
• Non-flammable

Specifications
• Size: 1 gallon
• Color: white
• Temperature: up to 515° F (268° C)
• MIL-STD-2000A, PARA.5.3.18 – Size: 8 fl oz./ 236 ml L
