Hakko Desoldering Gun Kit

The configurable handpiece uses quick-change composite nozzles and allows you to choose either a gun or pencil style handpiece.

Note: Nozzles not included.

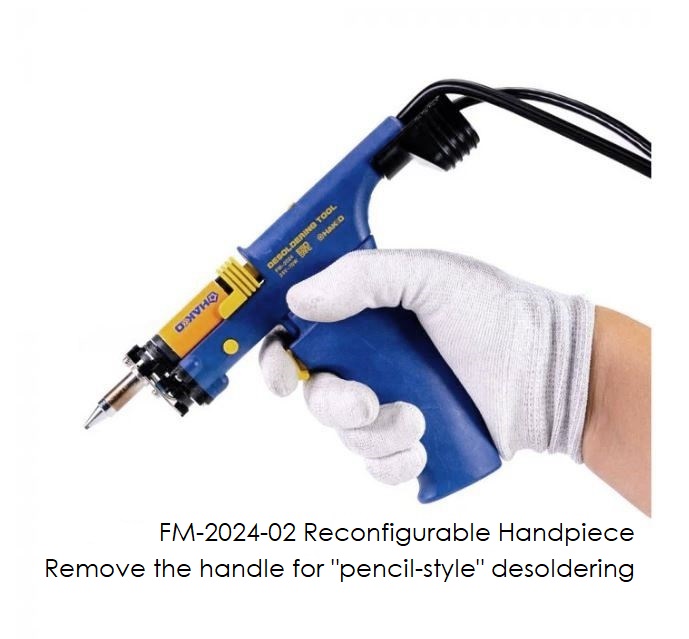

Gun-to-Pencil Configuration
The Hakko FM-2024 also features an extremely lightweight, reconfigurable handpiece that allows the user the option to use the tool as either a gun or pencil style handpiece by simply removing or adding the Handle.

Nozzle/Tip Heater Cartridges
Building on Hakko’s revolutionary composite tip technology, the desoldering nozzle/tip heater cartridge assembly offers a one-step, quick-change design with fast thermal recovery; the enlarged throat and shortened nozzle design is virtually non-cloggable, making it ideal for NO LEAD applications; and its slender body enables it to reach those difficult-to-reach component pads on densely populated boards.

Disposable Filter
The disposable filter pipe is safe and easy-to-remove.

Specifications:

• Power Consumption: 70W (24V)
• Temperature Range:  660°F – 840°F (350°C – 450°C)
• Tip-to-Ground Resistance: < 2 ohms
• Tip-to-Ground Potential: < 2 mV
• Length (w/o cord): 180mm (7.09 in.)
• Cord Length: 1.2m (4 ft.)
• Weight: (w/o cord & hose) 2.3 oz. (65g)

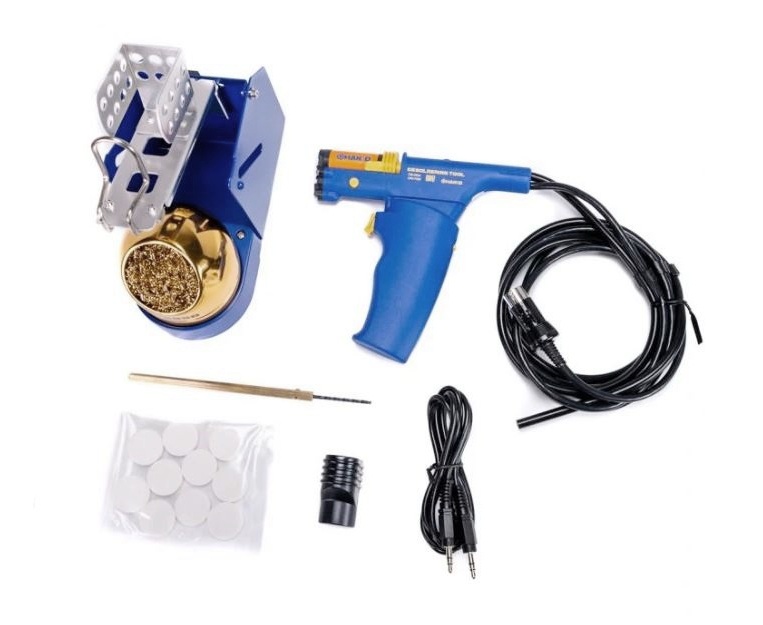

Package Contents:

• Tool w/ handle: FM2024-02
• Handpiece holder (w/ 599B): FH200-05
• Cleaning drill: B2873
• Nozzle remover: B2876
•  Connecting Cable: B3253
• Ceramic Filter: A1613
• Rubber Feet (2 pieces)

• Nozzles not included
