As the design of PCBs evolve, the need for higher power desoldering tools with a wide arrange of nozzle configurations grows.



Features:
• Delay timer to prevent premature release of the vacuum system before solder has cleared the heater and is captured in the solder collection chamber
• Large easy to read display that includes a vacuum level indicator to let you know if there are restrictions building that will need to be cleaned out
• 3-user programmable presets
• Process control password lockout to prevent any unauthorized changes to the system’s operation or setup
• Each handpiece has a easy access solder collection chamber that is simple to clean
• Easy to change heater cartridge with HAKKO Composite Ceramic technology
• Independent nozzle, which provides a low cost of operation
• Basic maintenance kit with a variety of basic cleaning tools and replacement filters.

• Note: Unit includes (1) Standard Nozzle #N61-05. Other nozzles not included



Specifications
• Input Voltage: 120VAC 50/60 Hz
• Temperature Range: 620° – 850°F (330°C – 450°C)
• Temperature Stability: ±9°F (±5°C) at idle
• ESD Safe



Station Specs
• Vacuum Generator: Pump – Double Cylinder
• Vacuum Pressure (max):80 kPa / 600 mm Hg (24 in. Hg)
• Suction Flow: 15 L/min
• Temperature Control : Microprocessor control using closed-loop sensor
• Temperature Presets: 3-User Programmable
• Sleep Enabled
• Auto Power Off Safety
• Low Temp Alarm
• Process Control Lockout (Password Protected)
• Size: 6.5 x 5.4 x 9.6 in. 165 x 137 x 244 mm
• Weight: 10.6 lb. (4.8 kg)



FR-4102-81 (Pencil-Style) Handpiece Specs
• Nozzle-to-Ground Resistance < 2 ohms
• Nozzle-to-Ground Potential < 2 mV
• Heater: HAKKO Composite Ceramic
• Standard Nozzle (included) #N61-05 (1.0 mm / 0.04 in.)

• Nozzles: N61 Series (optional)
• Cord Length 4 ft. (1.2 m)
• Total Length: 8.1 in. (206 mm)
• Weight: 0.38 lb. (170 g)

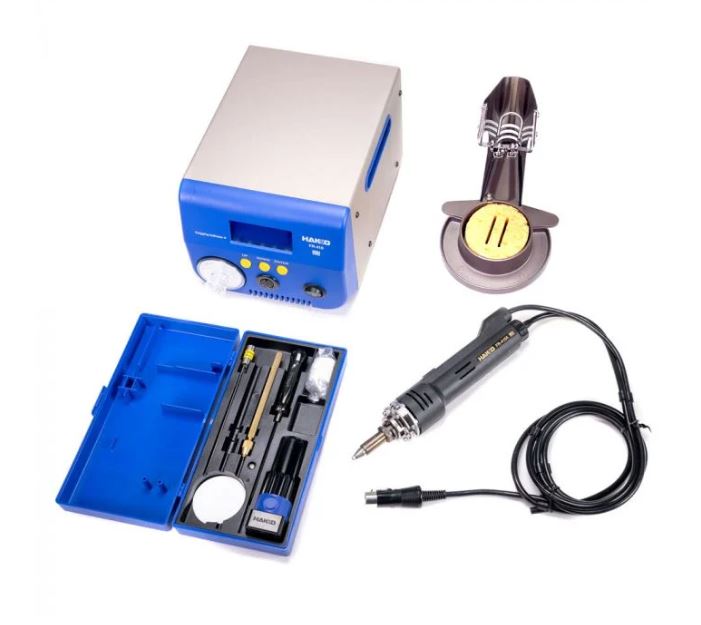

Package Contents:

• FR-410 Desoldering Station —-
• FR-4104-81 Pencil-Type Desoldering Handpiece

• Holder for FR-4104 Handpiece FH410-02
• Power Cord B2419
• Maintenance kit (includes the below 6 pcs)

• B1087 – 1.0 mm Cleaning Pin

• B1215 – Heating Cleaning Pin

• B1303 – 1.0 mm Cleaning Drill

• B5106 – Nozzle Wrench

• A5020 – Station Filter (x2)

• A5044 – Handpiece Filter (x4)

• Standard Nozzle N61-05
• Instruction Manual
