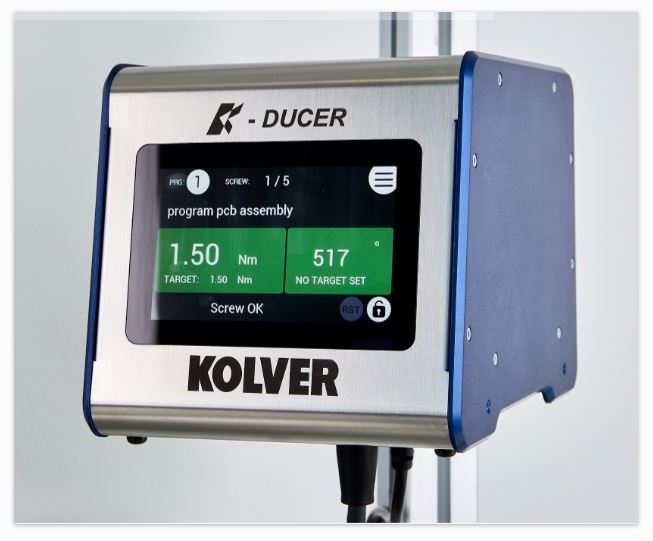

The KDU-1 controller provides full control of the fastening operation in a compact size. Unit features touch screen color display, multiple programs and sequences, intuitive programming interface, torque and angle control and graphs output. Unmatched performance and value. Set-up and operation are an easy task. The KDU-1 basic unit features total job options and include serial and USB ports. Program either through the touch screen or via PC software. Controller operates with the KDS-Series of tools. Use the mounting bracket to attach the controller to the wall or opt for the table stand that ensures quick access to cables when placing the unit on a flat surface. Please note that the wall mount does not swivel.

NOS – New Old Stock Special (1) unit
Regular Price $ 6513.00

KDU-1 Basic Controller Features:
• New Old Stock
• 5-inch Touch Screen
• 64 Programs
• 8 Sequences
• 20 input NPN
• 21 Outputs
• Torque Graph
• Bar Code Reading
• Torque and Angle Control
• Multiple Paremeters
• RS232 (2)
• Mini USB

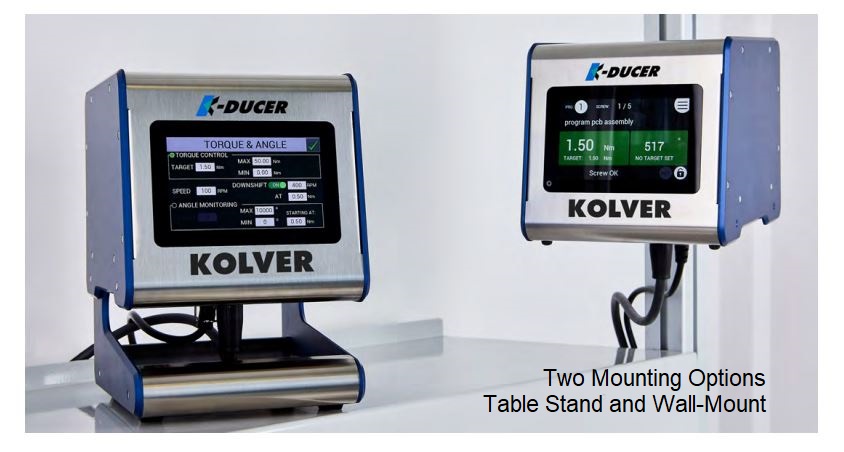

• Two mounting options: basic wall mount bracket or table stand

• Note: the wall mount does not swivel

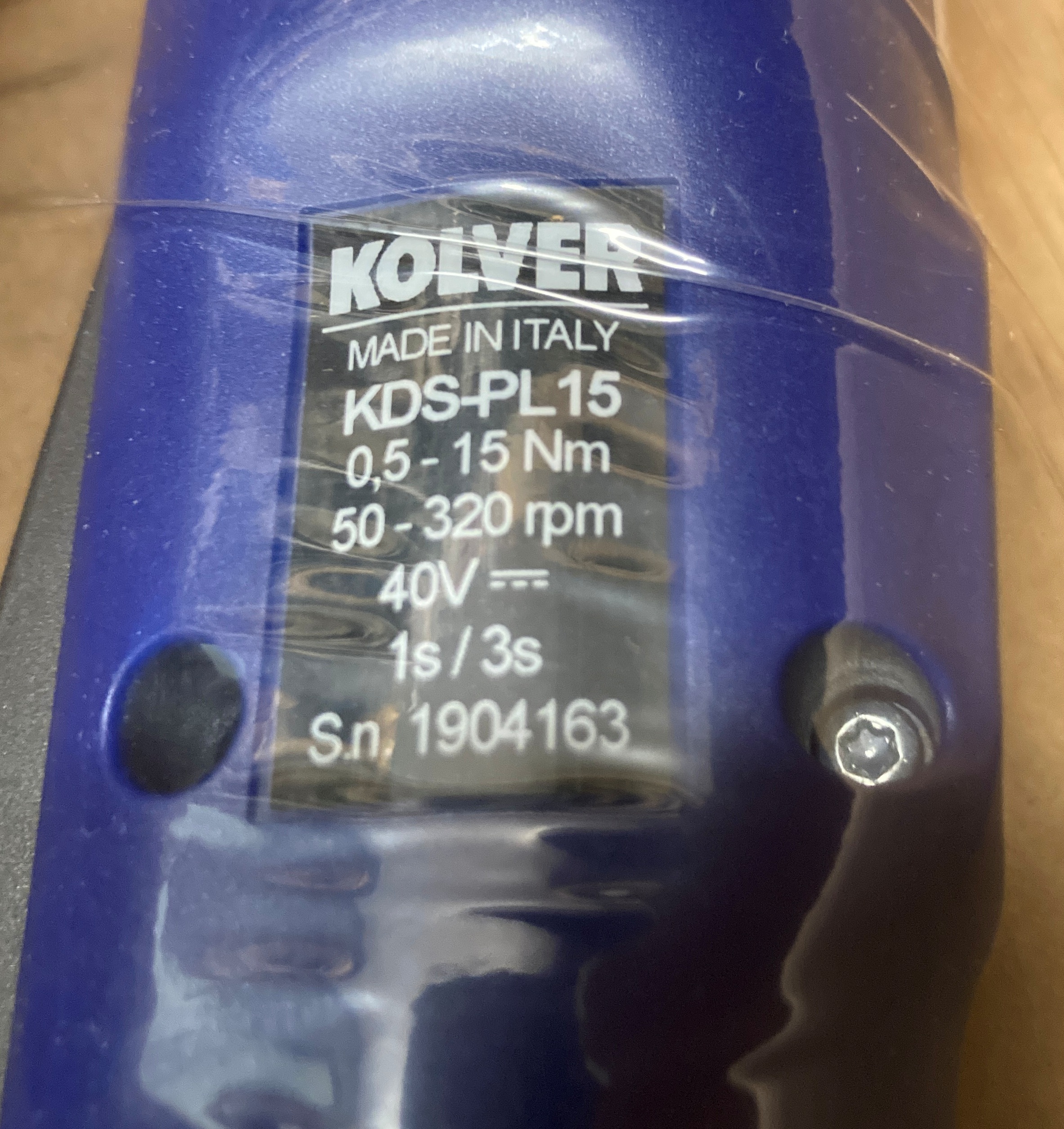

The KDS-PL15 K-DUCER Inline Transducerized Electric Screwdriver can go up to 132.8 in lbs (15 Nm); with a max speed of up to 320 rpm.
KOLVER KDS transducerized electric tools cover all assembly line requirements for accurate, high-quality torque and angle-controlled tightening. The built-in compact transducer provides torque control with excellent repeatability.
KDS-PL15 Transducerized Inline Electric Screwdriver Features:
• Unsurpassed ergonomics and soft touch design
• LED Status Indicators (ok, error, tightening etc.)
• Temperature protection
• Full traceability and error proofing capabilities: 100% compatible with Industry 4.0

KDS-PL15 Specifications:
• Drive size: 1/4” hex
• Free Speed: (RPM) 320
• Length: 251mm
• Max Free Speed: 320 rpm
• Series: KDS
• Torque Range: 4.42 – 132.8 in/lbs
• Torque Range: 0.5 – 15 Nm
• Type: Transducerized Electric Screwdriver

Package Contents:
• KDU-1 Control Unit
• KDS-PL15 Inline Electric Screwdriver
• Wall-Mount Bracket (flat mount)
• Table Stand (#010400)

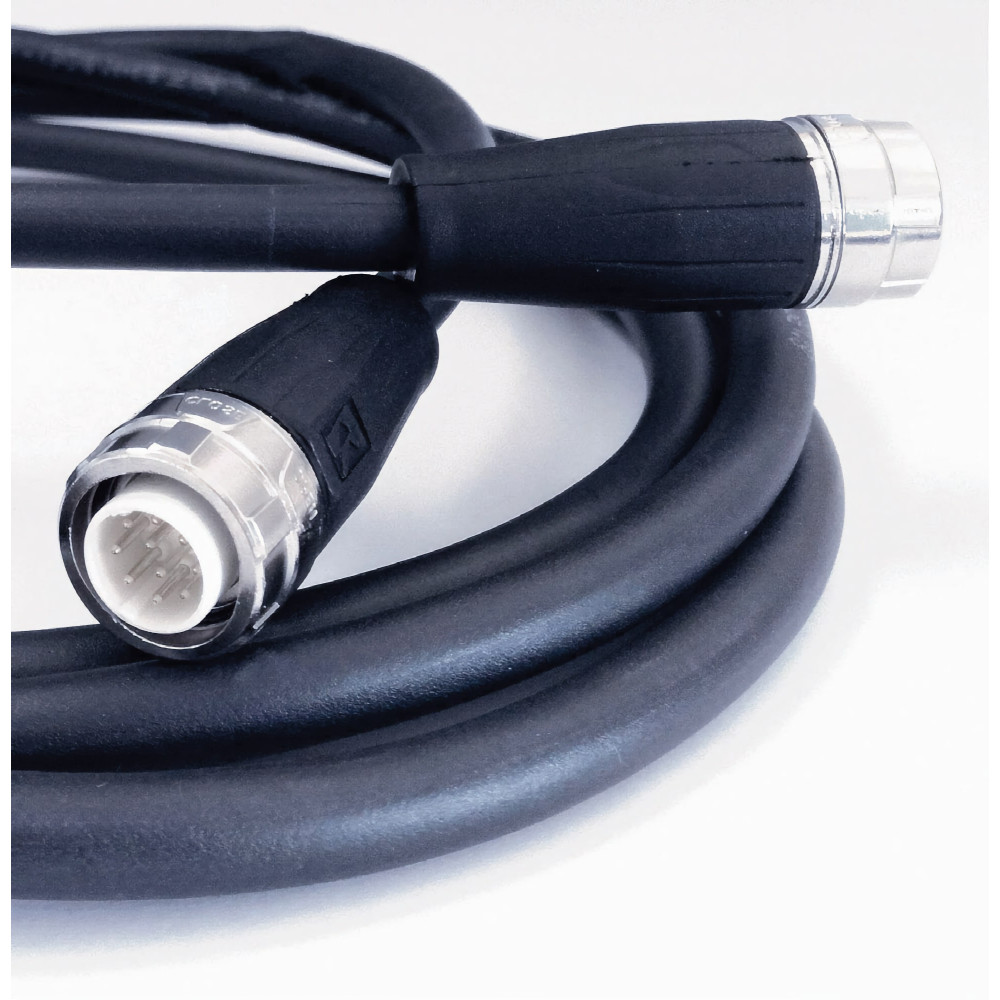

• 8-ft. KDS Cable Cord ; M16 10pin 98in (#250064)
• 3-prong power cord
• ESSCO Calibration Certificate (see attachments)
