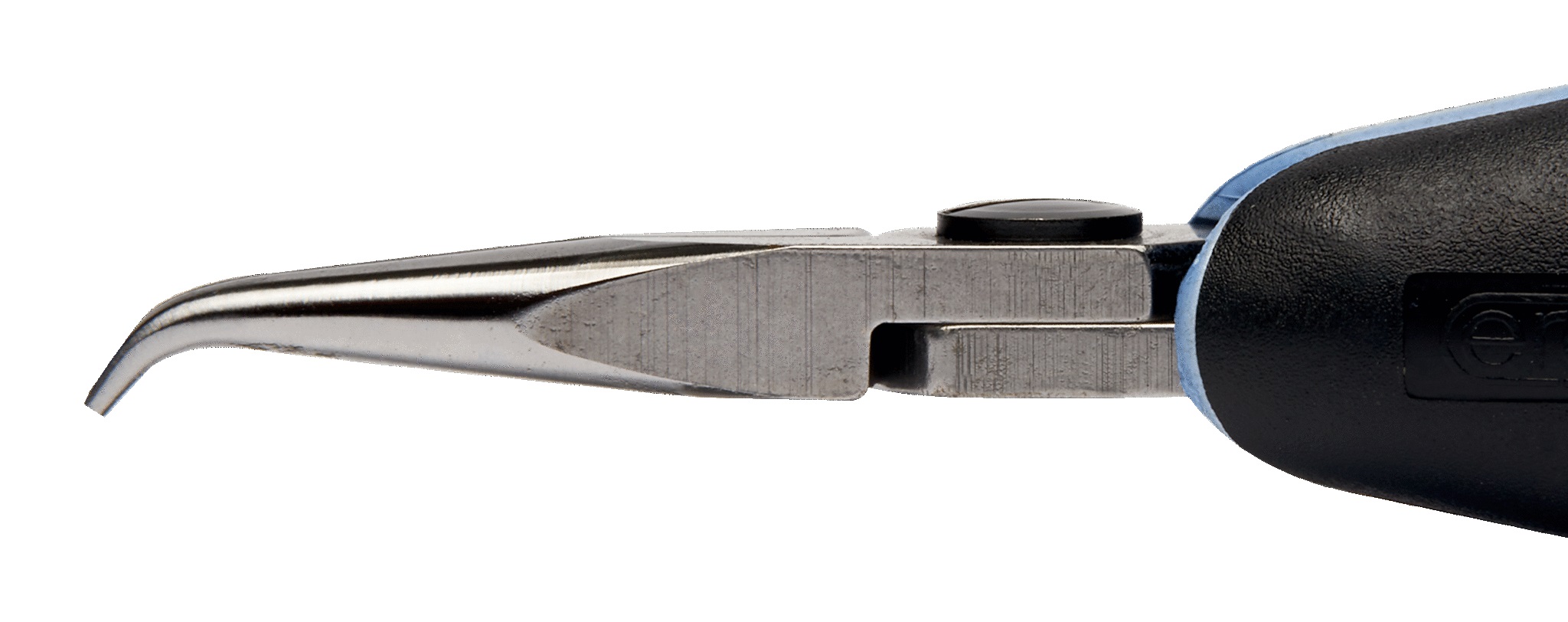

Medium-sized bent tip, snipe nose pliers provide good reach and a non-marring gripping surface. Bent-tip, bent at 60 degrees, allows the operator to use a more comfortable hand/wrist position and gain better visibility in certain applications.  ESD-safe ergonomic handles have an adjustable, three-position “S” springs. The RX grips can easily be rotated between the thumb and index finger for precision applications. The RX grip is slightly rounded and wide, creating excellent surface distribution and contact.

Features & Benefits

• Manufacturing precision tools since 1856

• Supreme Series snipe nose pliers

• Easily reach into difficult-to-access areas

• Non-marring gripping surface with beveled edges can bend material with minimal deformation
• ESD safe mono-material handles

• High performance alloyed steel
• Polished finish
• Numerically controlled machine grinding guarantees accuracy & increases the tools reliability & consistency
• Tough hardened 42-46 HRC
• Screw joint that minimizes friction & maximizes jaw alignment
• 29 mm jaws with radiused edges

• Micro-Touch: the shape of the handles makes it possible to control & rotate the pliers between thumb & index finger for precision work
• “S” Spring limits the tension throughout the working cycle of the tool & can be adjusted to 3 different positions or removed

• Price Break: 10 pcs. Contact Concorde for 10 pc. pricing. (Tel: 201-488-7474 • E-mail: info@concorde-electronics.com)

Specifications:

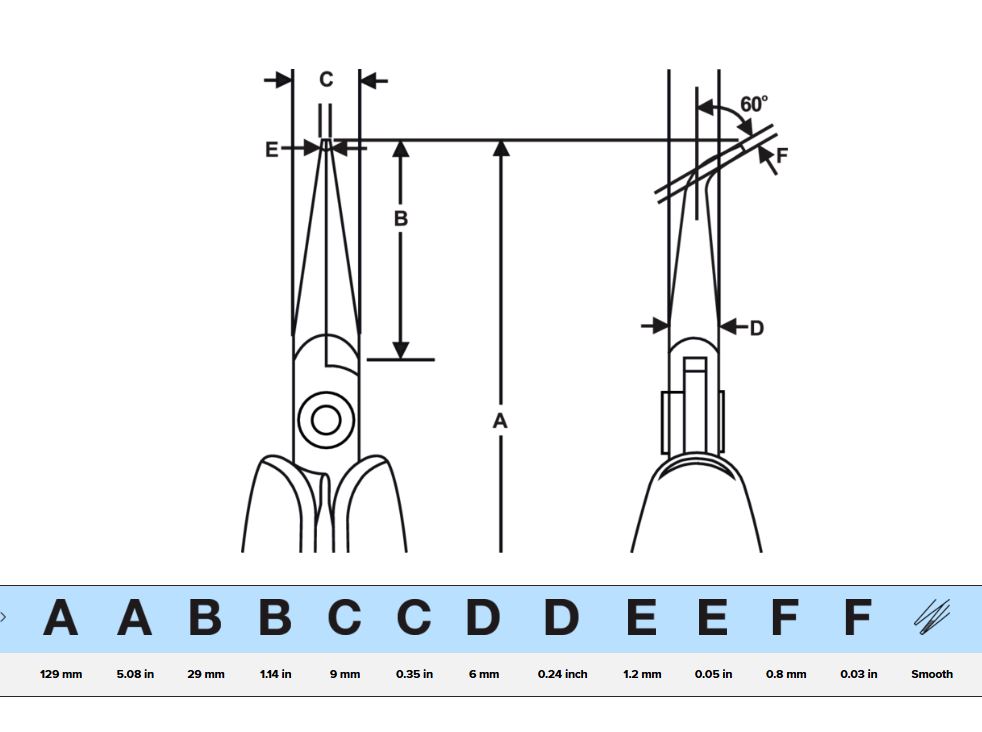

• See attachment for complete tool dimensions

• Tip: 60° angle bent

• Jaw Type: smooth

• Jaw Length: 29mm

• Length: 5-1/8″

• Tough hardened 42-46 HRC
