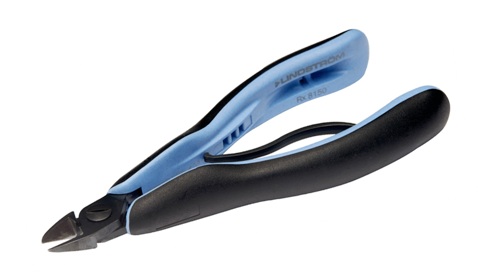

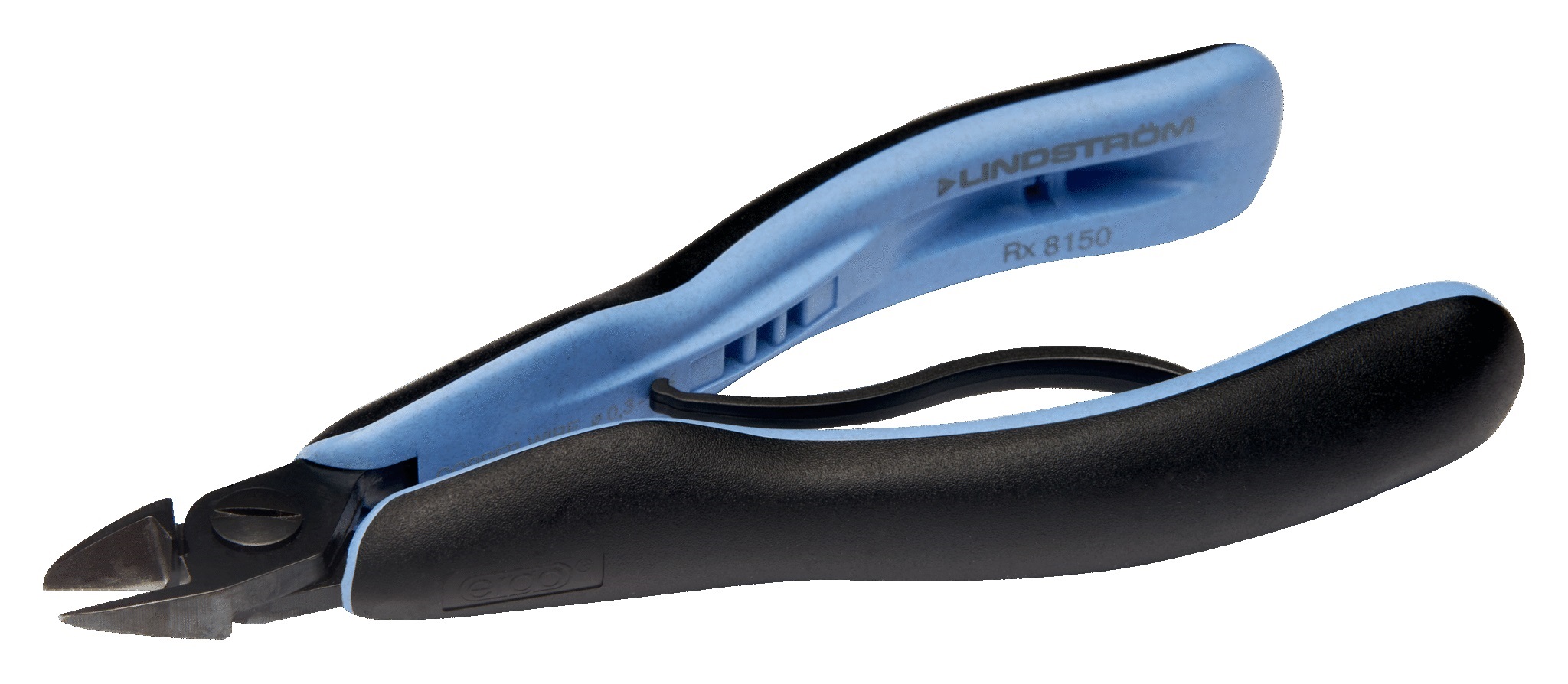

Swedish-made diagonal cutters have precision ground joints and adjustable “screw nuts” to eliminate the problem of “uneven wear” so often associated with precision cutters. Easier cutting will increase productivity while reducing fatigue-related conditions.

Perfect for use in close tolerance electronics, aerospace, defense and medical device manufacturing.

ESD-safe ergonomic handles have an adjustable, three-position “S” springs. The RX grips can easily be rotated between the thumb and index finger for precision applications. The RX grip is slightly rounded and wide, creating excellent surface distribution and contact.



Features & Benefits:

• Manufacturing precision tools since 1856

• 80 Series precision diagonal and stripping cutter

• High performance Swedish alloyed steel

• Flush cut
• The cutting capacity given is for copper wire
• Suitable for cutting Cu

• ESD Safe handles have a thermoplastic surface, for comfortable grip, over a tough polypropylene core for rigidity

• Ergonomic handles have an adjustable, three-position “S” springs.

• Black burnished non-glare finish helps to alleviate operator fatigue

• Corrosion resistant
• Numerically controlled machine grinding guarantees edge angle accuracy & contact, increases the tools reliability & consistency

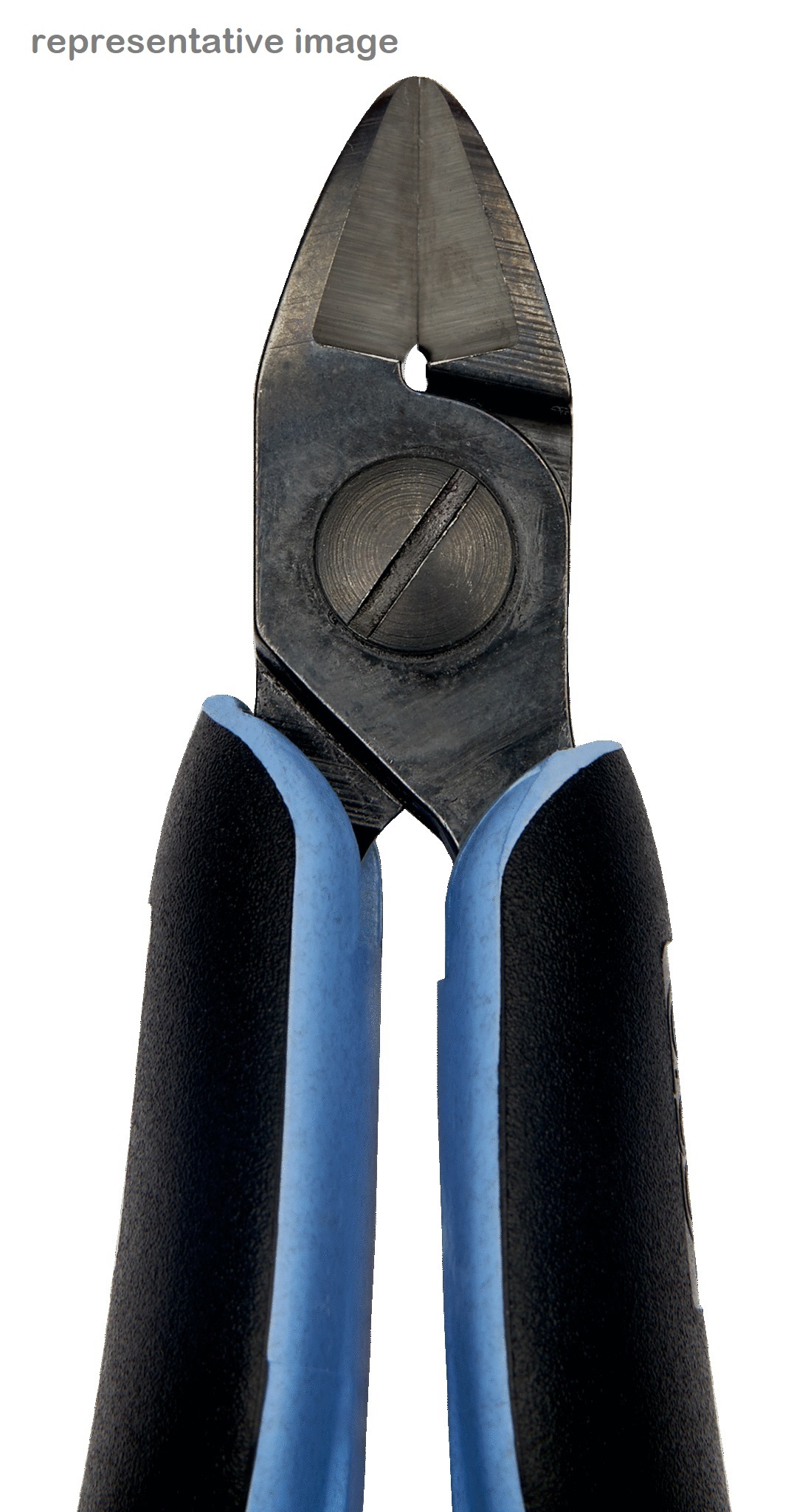

• Screw joint that minimizes friction & maximizes alignment of cutting edges
• Ideal for wire harness work & standard printed circuit board assembly
• Also valid for stripping

• Price Break: 10 pcs. Contact Concorde for pricing. (Tel: 201-488-7474 • Email: info@concorde-electroniccs.com)



Specifications:

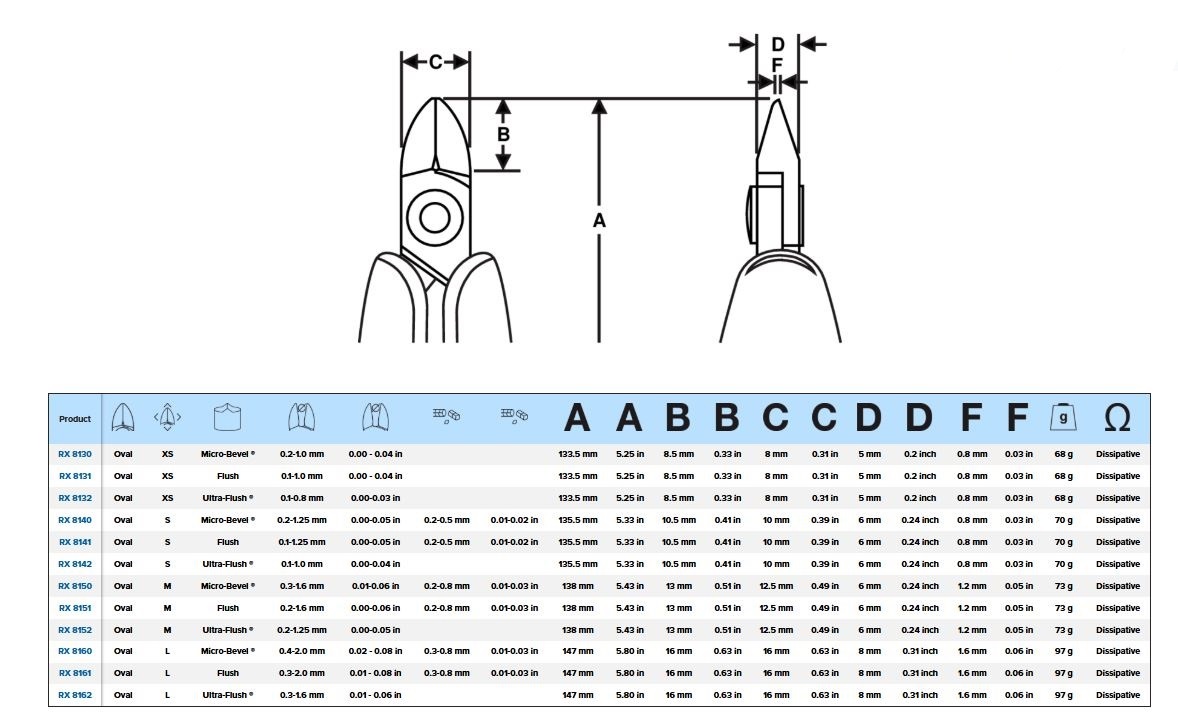

• See attachment for additional dimensions

• Length: 5″

• Jaw length .75″

• Precision induction hardened edges 63-65 HRC
