Soder-Wick’s pure copper braid has a unique geometric design that significantly reduces rework/repair time and minimizes the risk of heat damage to the board and sensitive components. Minimal flux residue on the board speeds up the cleaning process or eliminates it entirely.

Applications
• Small Pads, SMDs

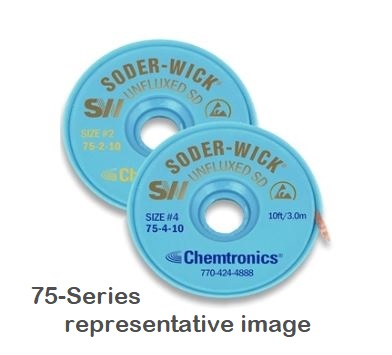

Soder Wick 75-2-10 Features:
• Intended for water soluble soldering applications
• Can be coated with any flux type
• Allows for a constant flux type throughout the production process
• Unique geometric weave of the braid optimizes heat transfer into the solder joint
• Faster wicking action even at low temperatures
• ESD safe static dissipative spools

Specifications
• Braid Size: .#2 Yellow
• Braid width: .060″ (1.5mm)
• Braid Length: 10 ft.
• Flux type: UNLFLUXED
• Manufacturers Standard Pack: 25 pcs
• Conforms to DOD-STD-883E, Method 2022, ANSI/IPC J STD-004, Type ROL0, Bellcore TR-NWT-000078
