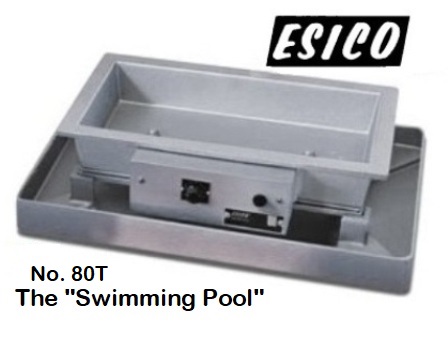

Esico-Triton #80T  The “Swimming-Pool” Extra-Large Rectangular Solder Pot with Temperature Control.

Just The Right Size . . . This 33 Pound Capacity Solder Pot was developed to meet the needs of higher volume production,

wider area pcb solder dipping, or similar applications. Extra Large Solder Pot is extensively used for short run soldering and

desoldering of thru-hole printed circuit boards.



Esico #80T “The Swimming Pool” Features:
• Unit features an adjustable thermostat for selecting the optimum operating temperature.
• Temperature control for easy adjustment

• Grey Cast Iron crucible is highly resistant to the corrosive nature of lead-free solders.

Ideally suited for lead-free soldering applications.

• Crucibles are thin-lipped for operator convenience, comfort, speed . . . and large volume production

• Made in the USA
• Esico-Triton is a division of American Beauty Tools
• Easy drop-ship from the Esico factory



Specifications:

• Esico-Triton Part No.: 80T (P800020)

• Maximum temperature: of 650º F (343° C)
• Solder capacity: 33 lbs.
• Net volume: 80 oz.
• Dimensions: 6″ x 12″ (inside depth 1-7/8″)
• 1200 watts
• RoHS Compliant



Optional replacement heating element: PE800020



High Voltage 220-240v Option:

High Voltage option: No.80T high voltage solder pot is available upon request. Call for pricing.

(Tel: 201-488-7474 • Email: Info@concorde-electronics.com)
