The RF connector on the Hakko FX-1001 soldering handpiece is the same as “other” RF induction heat soldering stations so you can use the FX-1001 with “other” select RF induction heat soldering systems at 13.56 MHz. Tips not included.

Features:
• Powered by RF (induction) heating
• Compatible with “other” RF induction heating soldering stations @ 13.56 MHz
• No calibration or system settings required

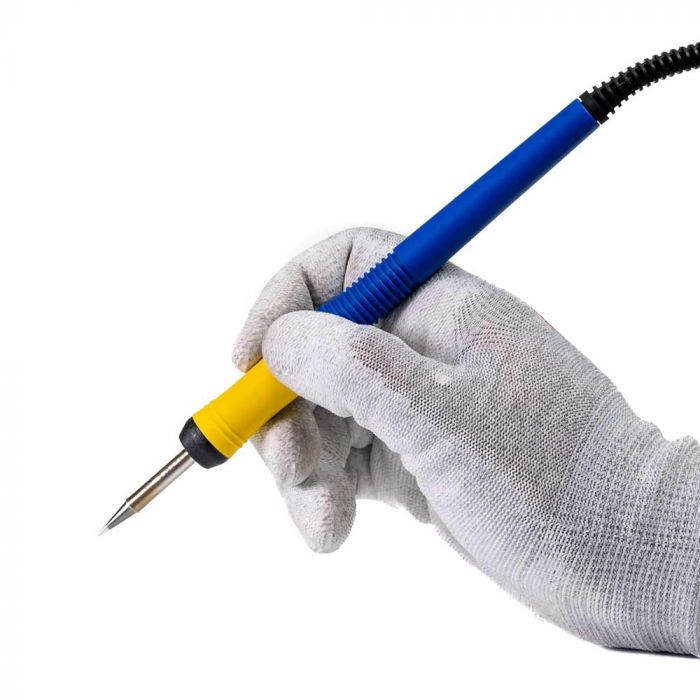

• Ergonomic handpiece
• Slender and lightweight
• Uses Hakko T31 Series tips (less expensive than others and offer up to 2-3X longer tip life)

• Note: tips not included

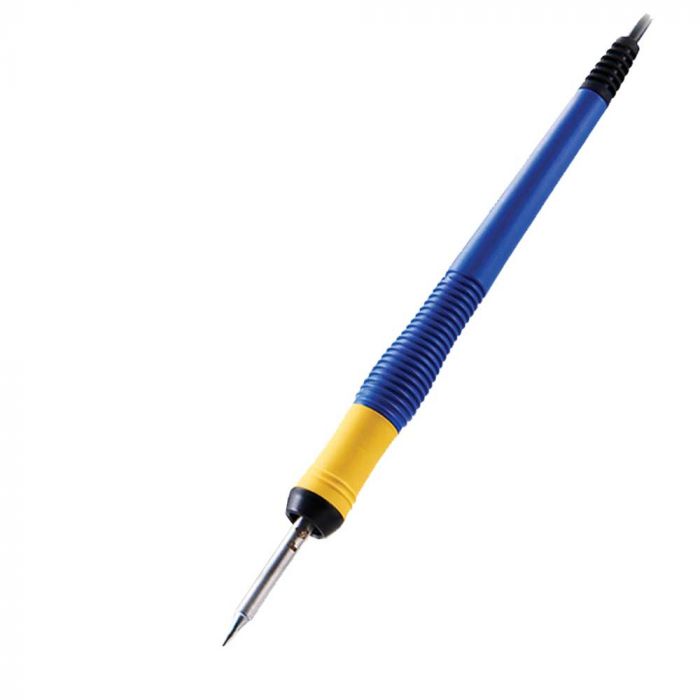

Soldering Handpiece Specs:

• Part No. FX1001-51
• Tip-to-Ground Resistance < 2 OHMS
• Tip-to-Ground Potential < 2mV
• Length of Cord 4.3 ft. (1.3 m)
•Total Length (w/o cord) 7.5 in. (190 mm) w/T31-02D24 tip
• Weight (w/o cord) 0.07 lbs. (31g) w/ T31-02D24 tip
• Tips (not included)
• T31-00 Series = 895°F (480°C)

• T31-01 Series = 840°F (450°C)

• T31-02 Series = 750°F(400°C)

• T31-03 Series = 660°F(350°C)

• Reach 4.3 ft. (1.3m)
• Heating Element: High Frequency Induction-Type

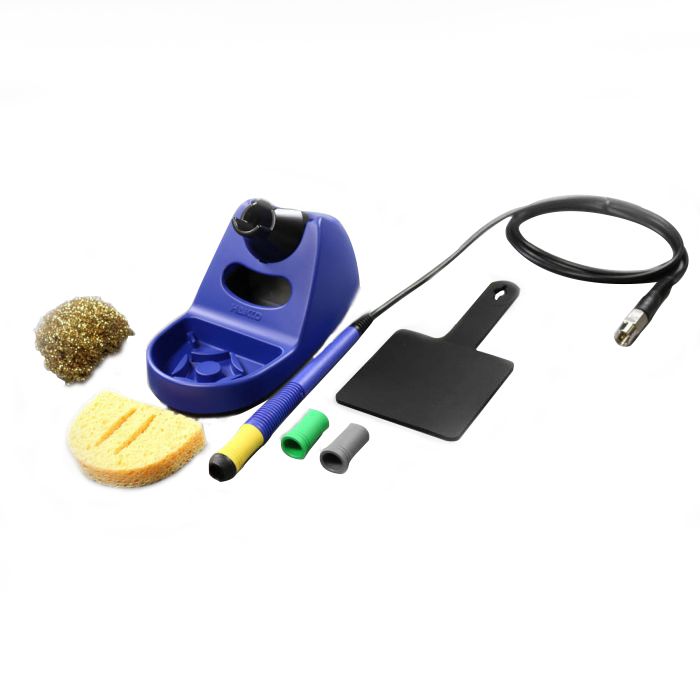

Kit Includes:
• FX1001-51 Handpiece
• Iron Holder with cleaning sponge and brass coils
• Heat Pad
• Two extra grips
