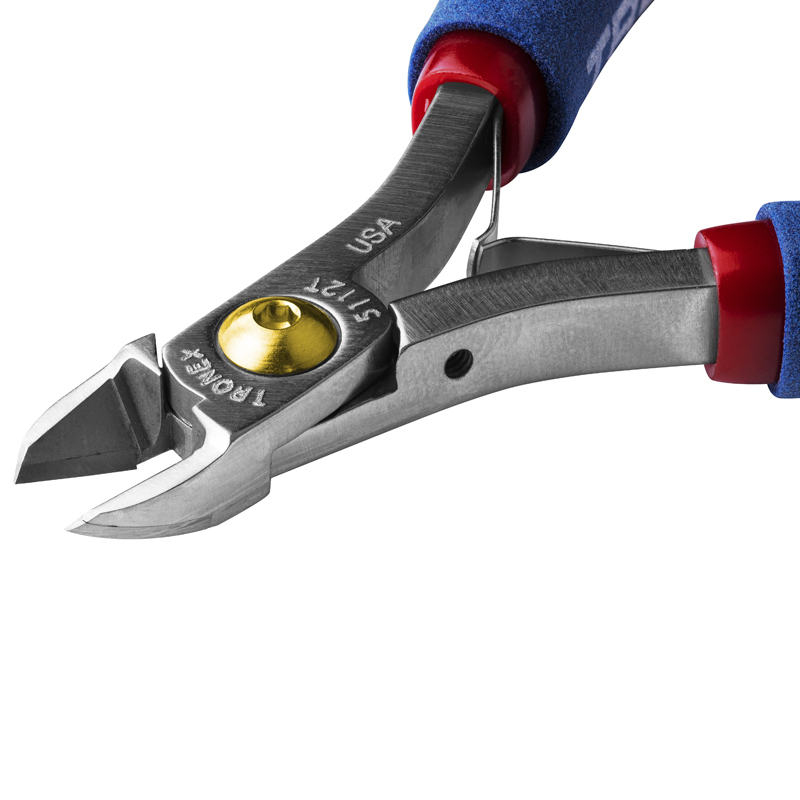

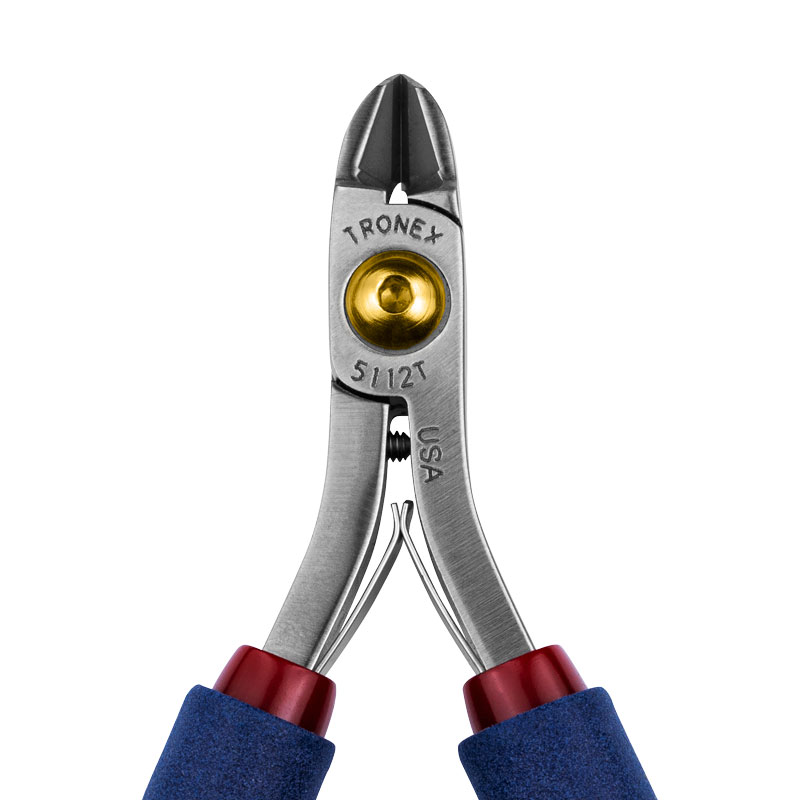

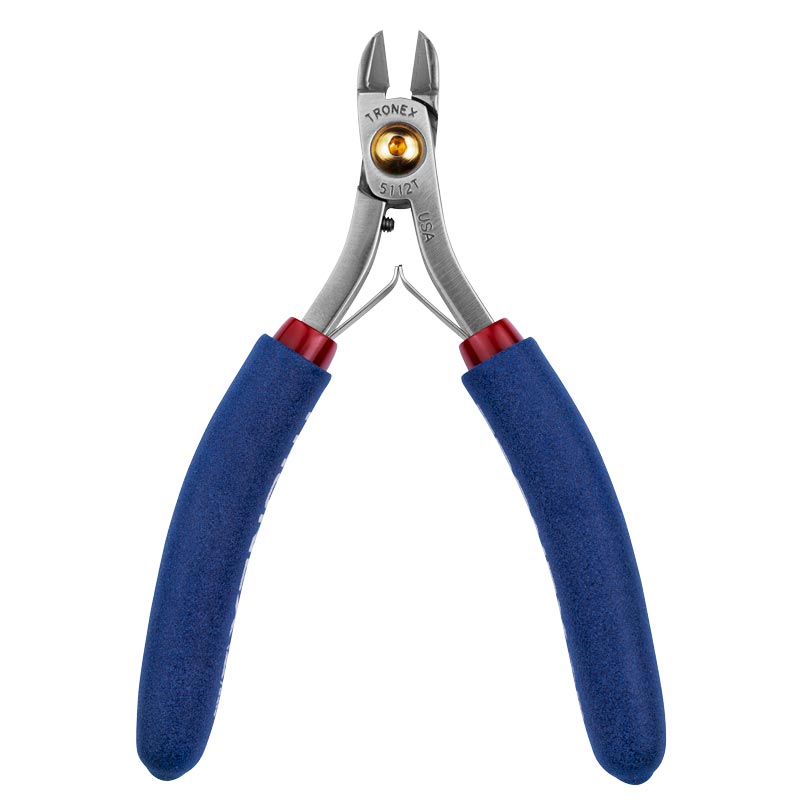

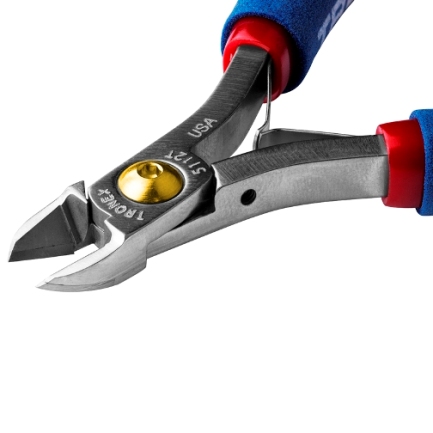

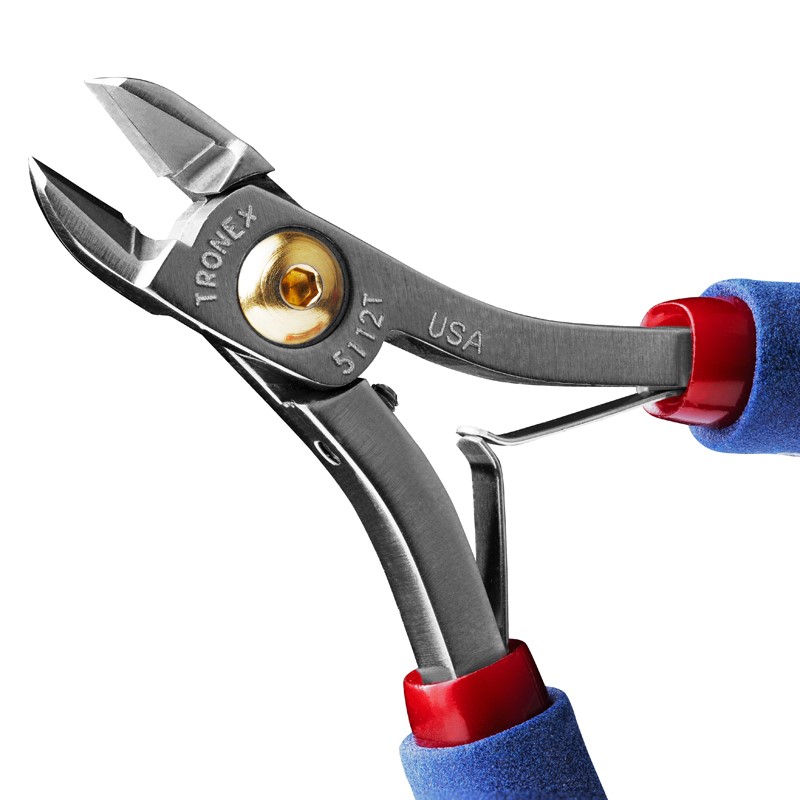

Tronex 5112T Hard-Wire Oval-Head Flush Cutter | Class T | Tungsten Carbide | ESD-Safe Cushion Grips | 32-22 AWG
Tronex 5112T Hard-Wire Oval-Head Flush Cutter | Class T | Tungsten Carbide | ESD-Safe Cushion Grips | 32-22 AWG
$254.00
Old SKU: Tronex 5112TTronex Hard Wire Cutting Tools – Precision and Power Combined. Class T cutters have tougher, more rigid jaws than the Class W line. Designed with a dual material construction combining the high yield strength of carbon steel for the body and intense localized hardness of Tungsten Carbide for the cutting edges.
Features
• Head Shape: Oval Head

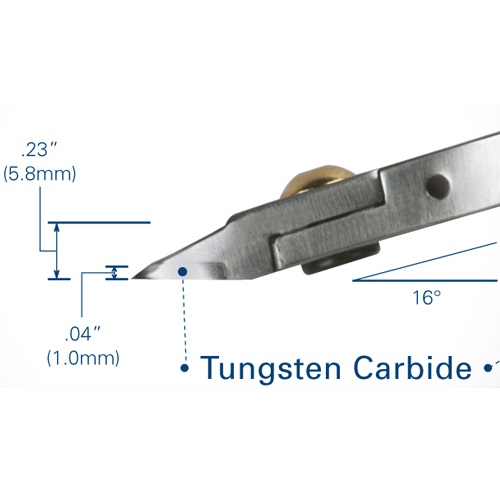

• Durable Carbon Steel body with sharp Tungsten Carbide cutting edges for high tolerance demands
• Tools has superior strength even when under constant pressure
• Robust joint design

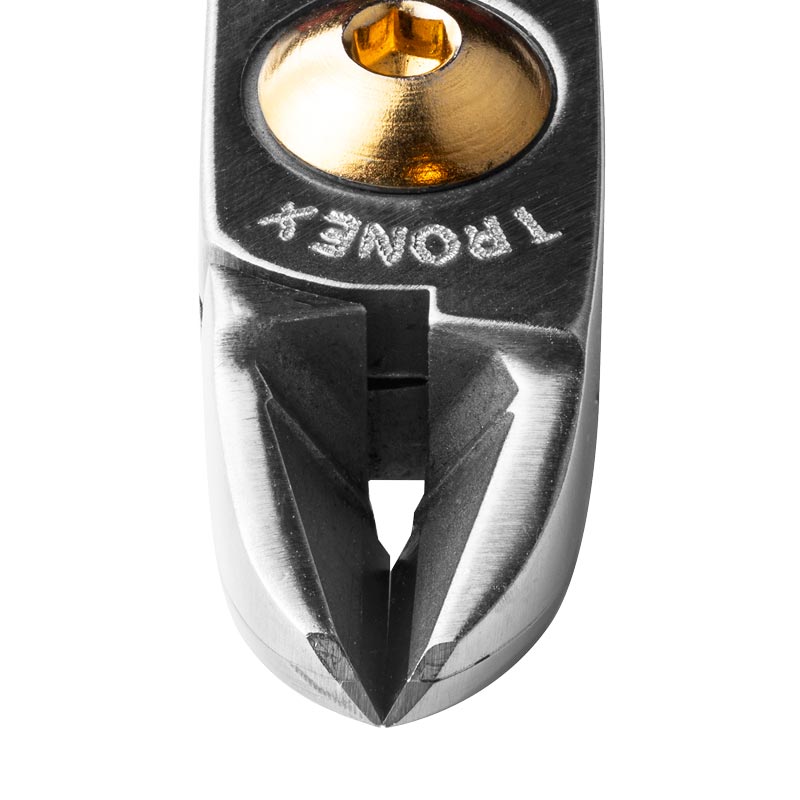

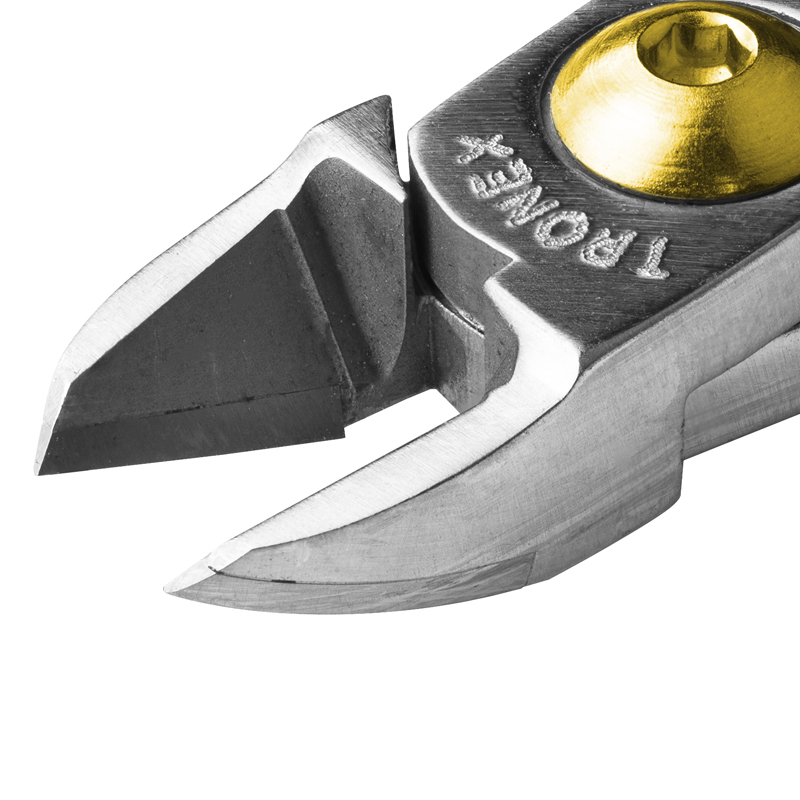

• Cutting Edge: Flush
• Handle Length: Standard
• Ergonomic ESD-safe double sheathed cushion grips
Applications:
• Medical Device Manufacturing
• Memory wire, Nitinol and stainless steel
Specifications
• Cutting Capacity (soft copper wire): .008″ – .025″ (0.2 mm – 0.65 mm) | 32-22 AWG
• Material Hardness: 79-81 HRC
• RTT Resistance: <1 x 1011 ohms tested per ANSI/ESD STM11.13 Two-Point Probe, resistance measurement for static dissipative materials

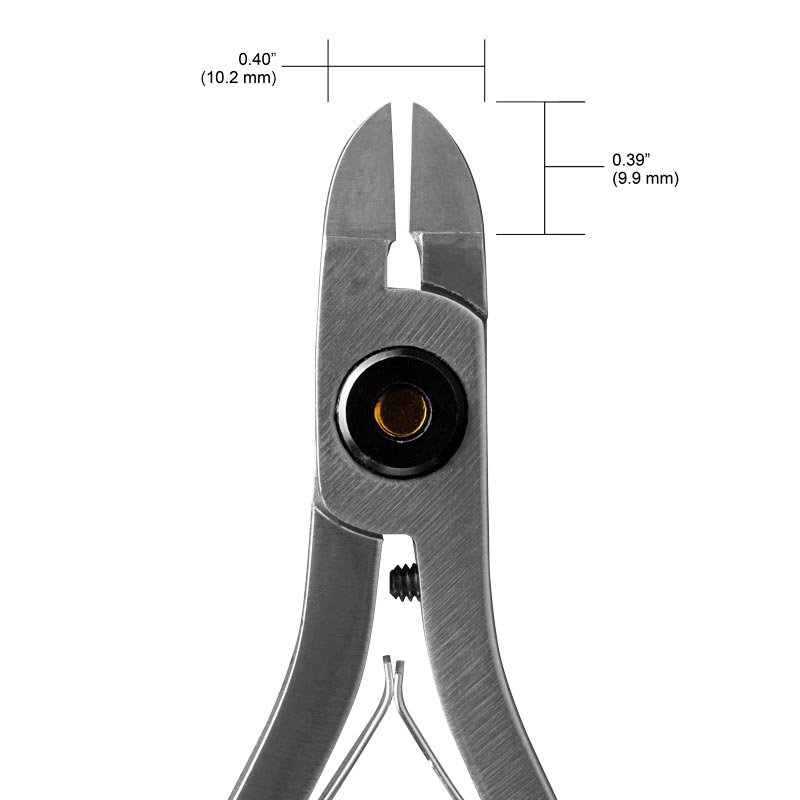

• Overall Length: 4.6″ (117 mm)
| Weight | 2.25 lbs |
|---|---|
| Dimensions | 6 × 2.5 × .75 in |
| Product Type | |
| Max Cut | 22AWG |
| Application | Medical Device Mfg. |
| Cutter Type | Oval Head – Hard Wire |
| Handle Type | Ergonomic |
| Cut Edge | |
| Wire Size | 32-22 AWG |
