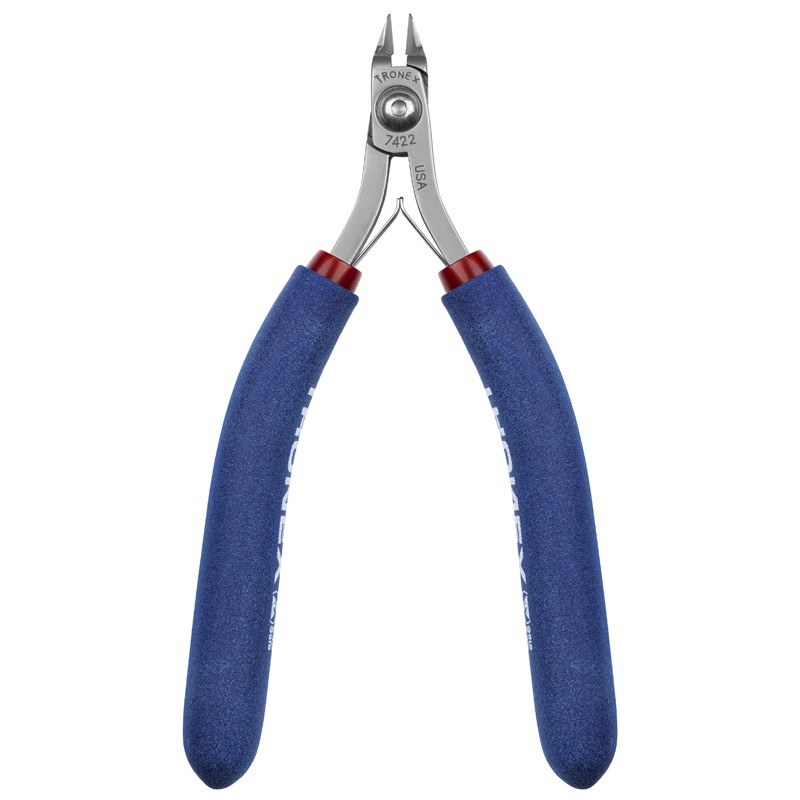

Tronex 7422 Mini Taper-Relief Flush Cutter | ESD-Safe Cushion Grips | Long Ergo Handle | 38-18 AWG
Tronex 7422 Mini Taper-Relief Flush Cutter | ESD-Safe Cushion Grips | Long Ergo Handle | 38-18 AWG
$77.00
Old SKU: TR7 5422Tronex 7422

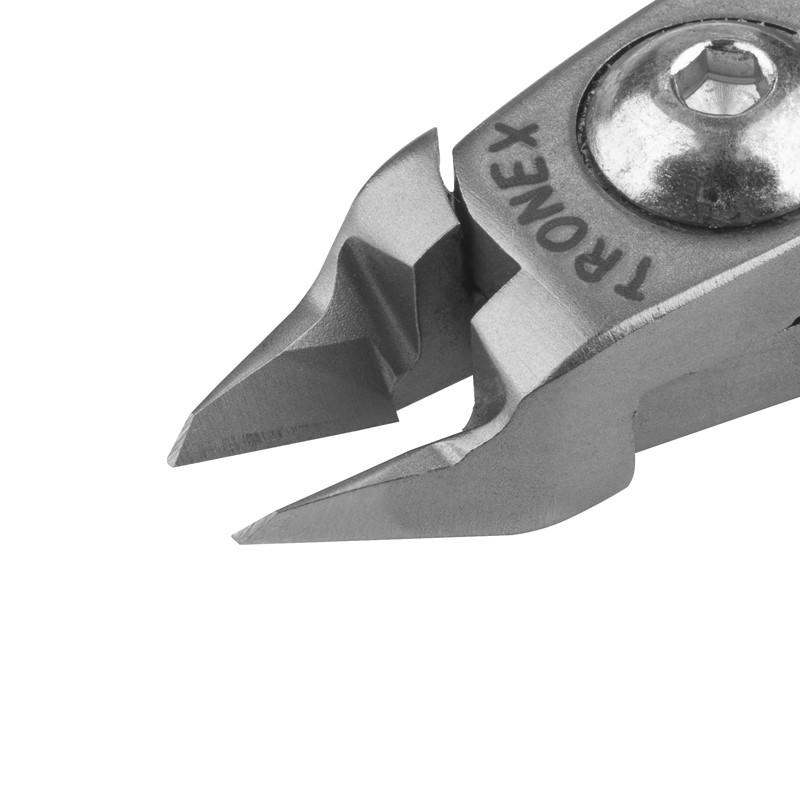

Hardened steel tool, rugged and precise, mini taper-relief head flush cutter is capable of cutting exceptionally fine soft wires up to 18 AWG. Pointed, low profile head easily reaches into difficult-o-access areas yet has sufficient strength to avoid tip breakage when used to cut exceptionally fine wire. Make crisp cuts at the tip and all along the cutting edge.
Tronex Features
• Cut exceptionally fine, soft wire up to 18 AWG
• Miniature tapered head
• Flush cut
• Longer-length ergonomic cushion-grip handle
• Hardened alloy steel for strength and durability
• Cut extremely fine wire in hard-to-access areas
• Precision ground for a sharper cutting edge
• Fine, set screw stop keeps the cutting edge from dulling
• Handle Grips: Ergonomic longer-length, cushion, double sheathed
• Non-protruding leaf spring will not “catch”
• Glare resistant, satin finish is easier on the eyes
Recommended Applications
• Electronics
• Wire harness work
Tronex Specifications
• Cutting capacity: soft wire 38-18 AWG, 004″ – .039″ (0.1mm – 1mm)
• ESD safe (RTT Resistance: 11 ohms tested per ANSI/ESD STM11.13 Two-Point Probe, resistance measurement for static dissipative materials)
• Overall length: 7″
| Weight | 1.2 lbs |
|---|---|
| Dimensions | 6 × 2.5 × 0.75 in |
| Product Type | |
| Max Cut | 18AWG |
| Application | Electrical, Electronics, Wire Harness |
| Cut Edge | |
| Cutter Type | Tapered Relieved Head |
| Handle Type | Ergonomic – Longer Length |
| Wire Size | 38-18 AWG |
