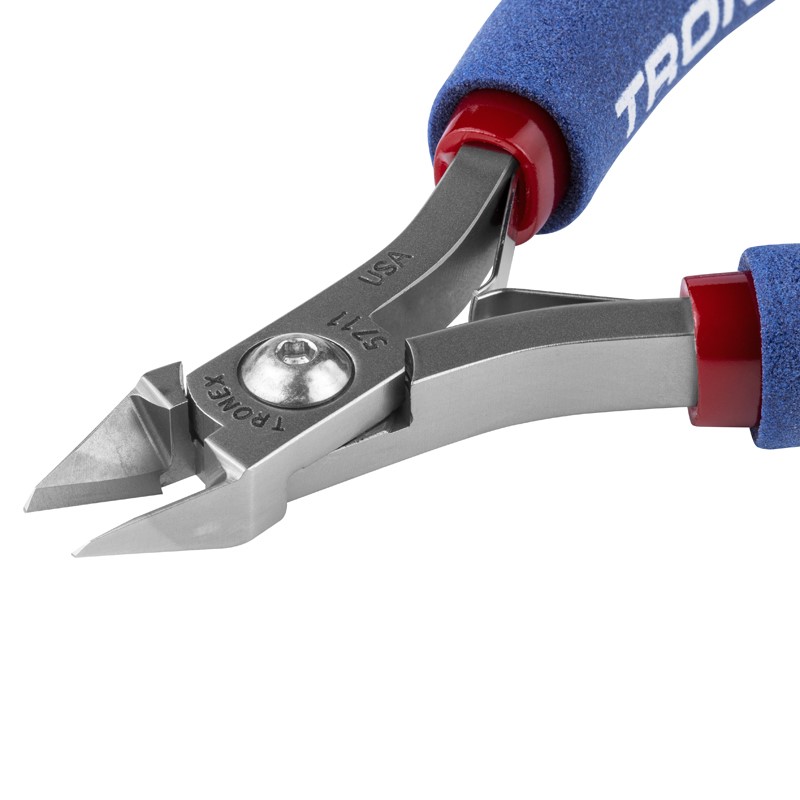

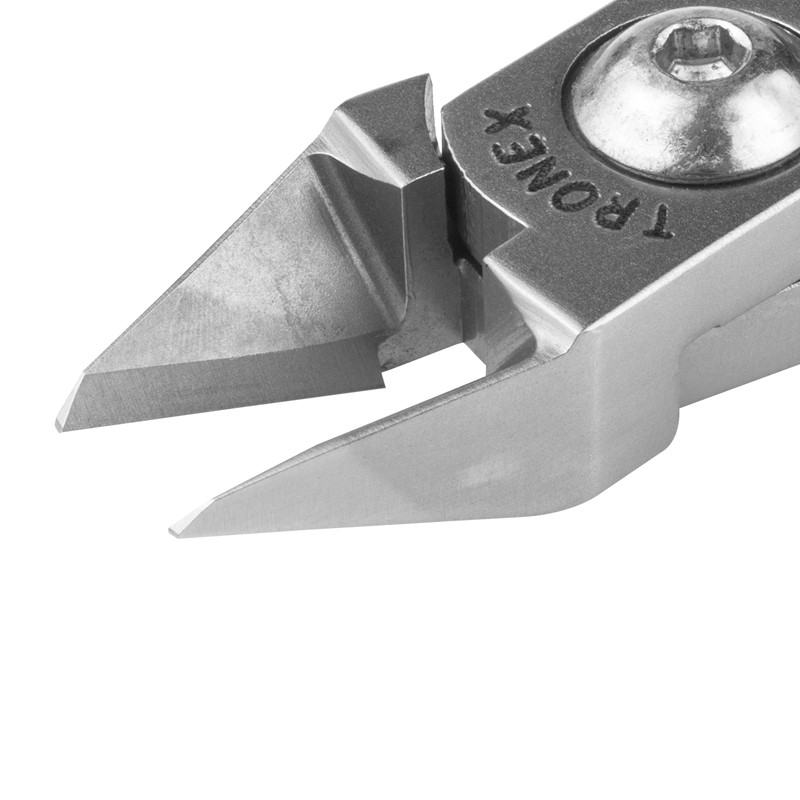

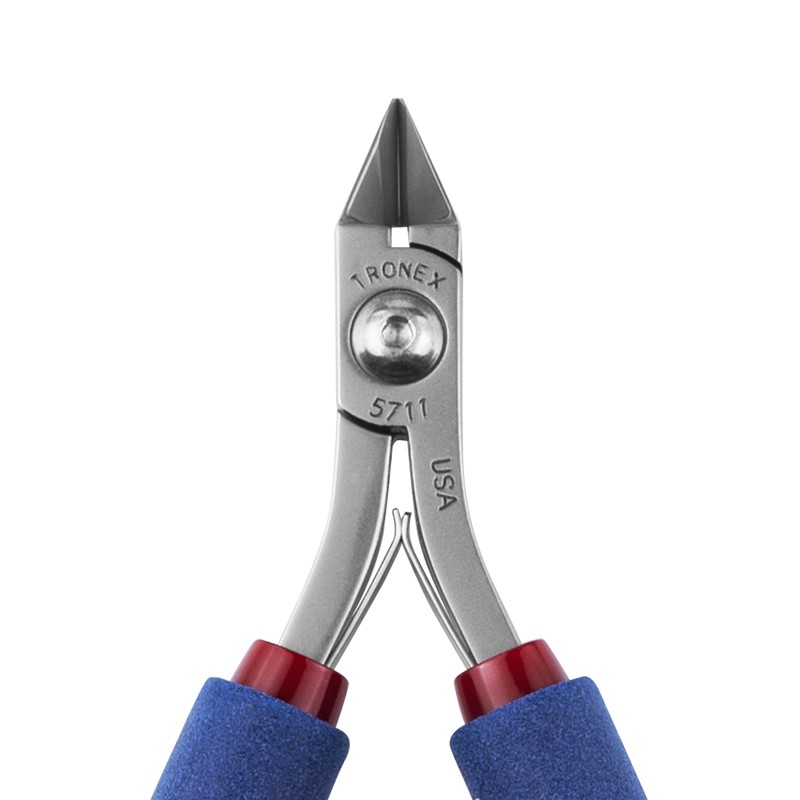

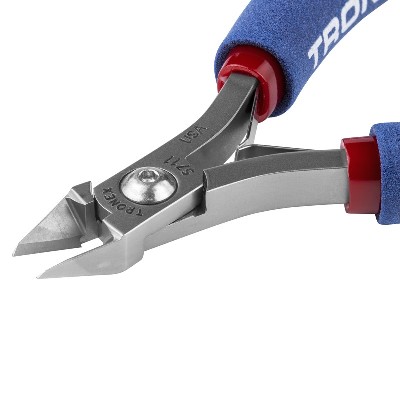

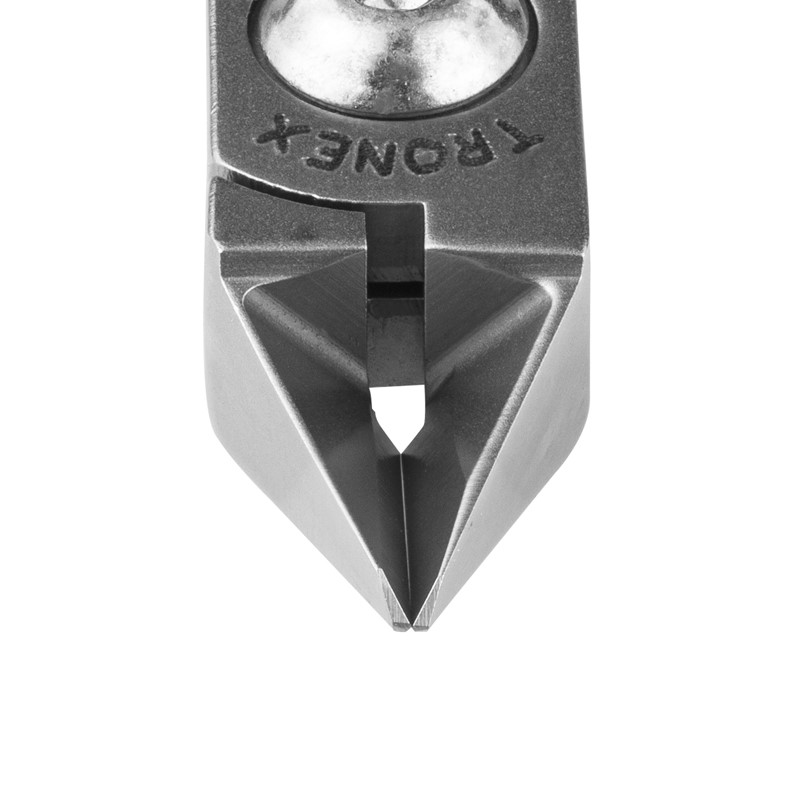

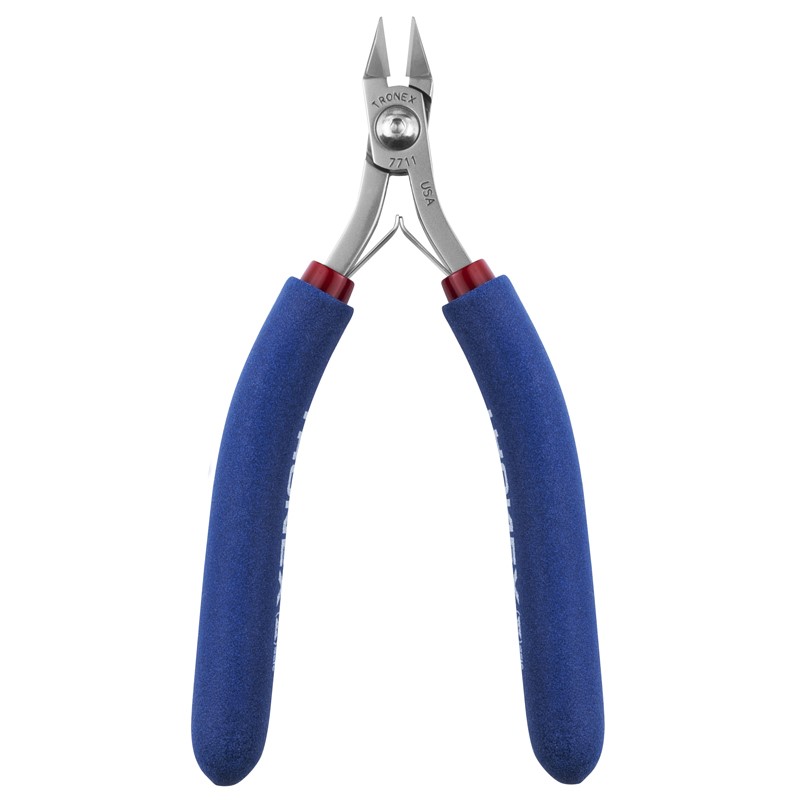

Tronex 7711

Hardened steel tool is rugged and precise. This taper-head semi-flush cutter can reach into difficult-to-access areas easily cutting soft wires up to 16 AWG. Larger, pointed head has an extra long jaw for the possible cutting of multiple leads. Taper head allows for easier access yet has sufficient strength to avoid tip breakage when used within its capacity. Fine, set screw stop prevents the cutting edge from dulling even when strong force is applied. Make crisp cuts at the tip and all along the cutting edge.

Tronex Features

• Cut soft wire 32-16 AWG
• Hardened alloy steel for strength and durability
• Semi-Flush cut
• Precision ground for a sharper cutting edge
• Fine, set screw stop keeps the cutting edges from dulling
• Handle Grips: Ergonomic longer-length, cushion, double sheathed
• Non-protruding leaf spring will not “catch”
• Glare resistant, satin finish is easier on the eyes
• Semi-Flush cut
• Cut multiple leads at the same time
• Longer-length ergonomic cushion-grip handles

Recommended Applications
• Electronics

Tronex Specifications

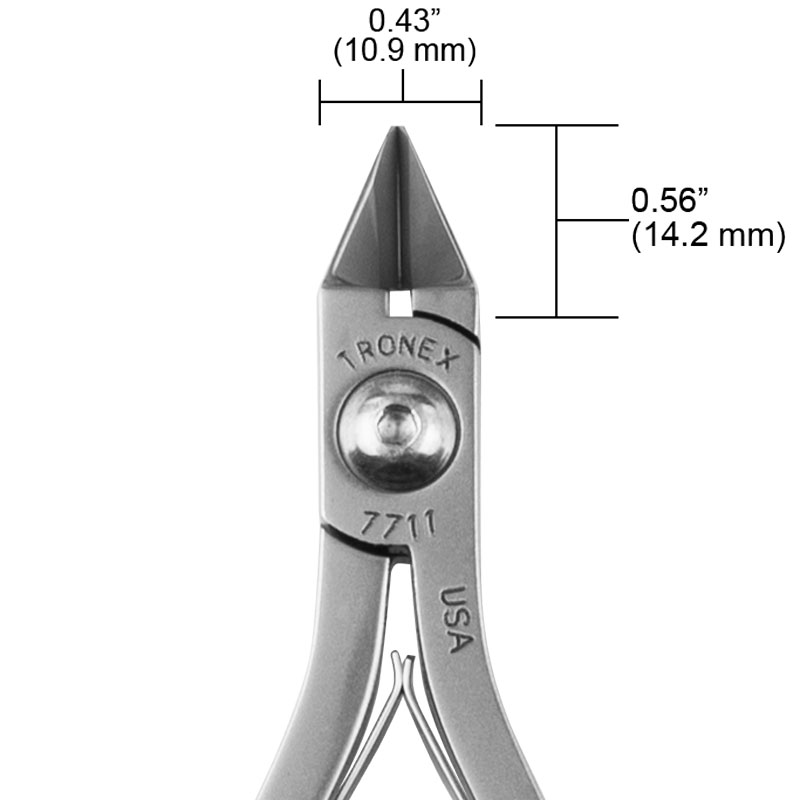

• Cutting capacity: soft wire 32-16 AWG | .008″ – .051″ (0.2mm – 1.3mm)

• ESD-safe (RTT Resistance: 11 ohms tested per ANSI/ESD STM11.13 Two-Point Probe, resistance measurement for static dissipative materials)
• Overall Length: 7″
