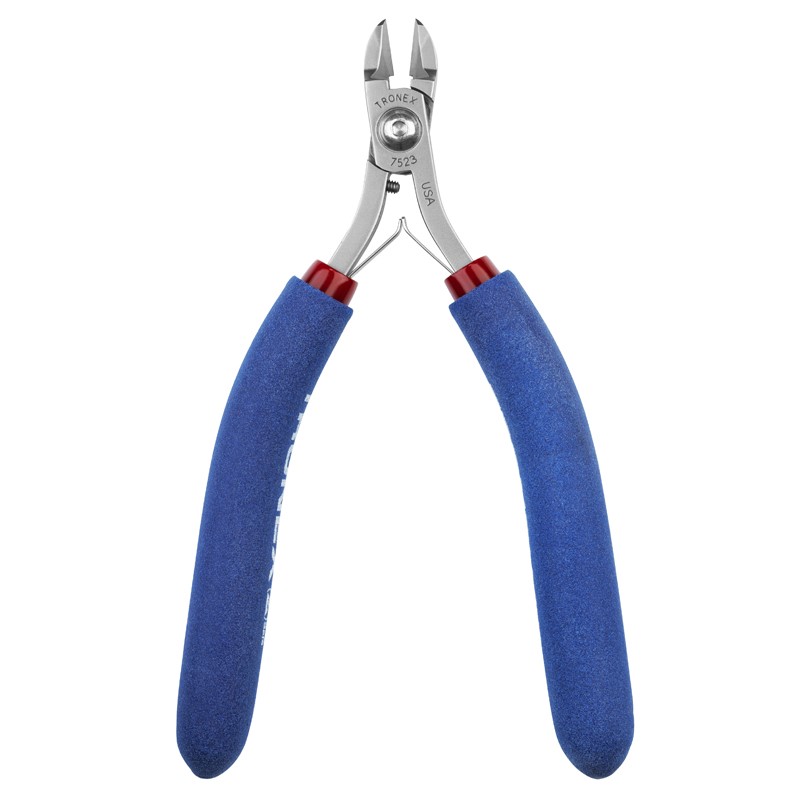

Tronex 7523

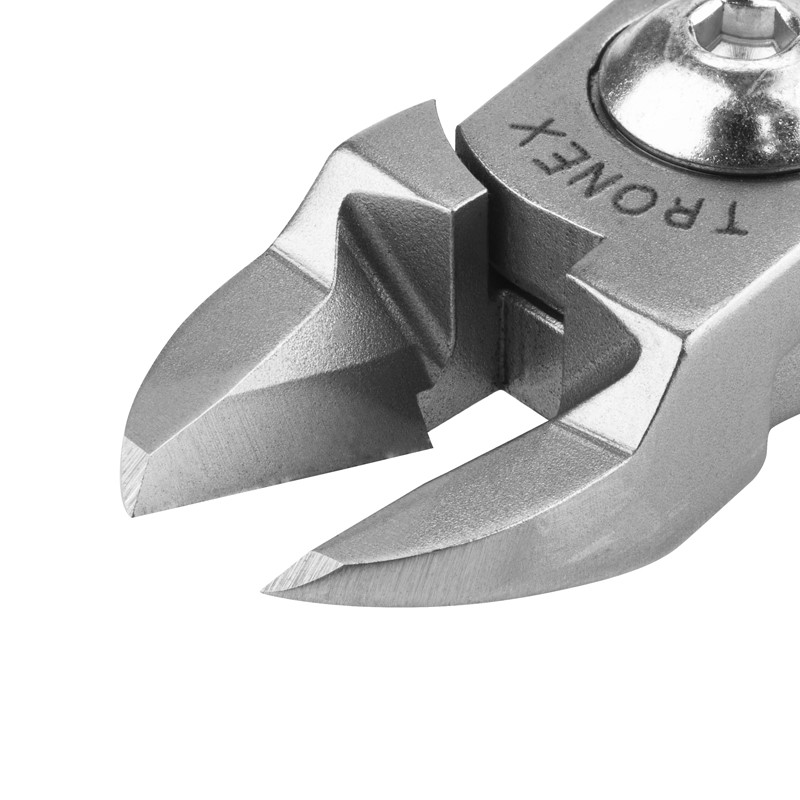

Hardened steel tool has razor-sharp cutting edges. Razor-Flush® cutters, with cutting edges that come together like two razor blades, will cut wire or leads exceptionally flush without the “pinch” or beveled edge. Razor-Flush cutting minimizes shock when cutting leads on components. The lower-profile head allows for greater access into hard-to-reach areas. Longer and wider, extra large oval head is ideal for cutting cables, wire harnesses and copper wire up to 16 AWG.  Make crisp cuts with the tip and anywhere along the cutting edge.

Tronex Features

• Cut soft wire 38-16 AWG
• Razor-Flush® cut
• Extra sharp cutting edges
• Longer-length ergonomic cushion-grip handles
• High-grade alloy steel for strength and durability
• Extra sharp cutting edges
• Exceptionally flush cut
• Cut delicate component leads with less “shock”
• Precision ground for a sharper cutting edge & perfect alignment
• Handle Grips: Ergonomic longer-length, cushion, double sheathed
• Non-protruding leaf spring will not “catch”
• Satin, glare resistant finish is easier on the eyes

Recommended Applications
• Electronics
• Jewelry Making
• Wire Harness Work

Tronex Specifications
• Cutting capacity: soft wire 38-16 AWG | .004″ – .047″ (0.1mm – 1.2mm)

• ESD safe (RTT Resistance: 11 ohms tested per ANSI/ESD STM11.13 Two-Point Probe, resistance measurement for static dissipative materials)
• Overall length: 5.8″
