High-Performance-Swedish-Steel diagonal cutters have precision ground joints and adjustable “screw nuts” to eliminate the problem of “uneven wear” so often associated with precision cutters. The small, angled oblique cutting head design easily reaches into confined, hard-to-reach areas where precision cutting could be challenging. Easier more effective cutting will increase productivity while reducing the number of fatigue-related injuries.

Perfect for use in close tolerance electronics, aerospace, defense and medical device manufacturing.

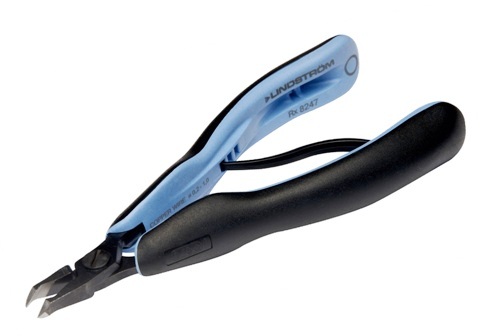

ESD-safe ergonomic handles have an adjustable, three-position “S” springs. The RX grips can easily be rotated between the thumb and index finger for precision applications. The RX grip is slightly rounded and wide, creating excellent surface distribution and contact.

Features & Benefits

• Manufacturing precision tools since 1856

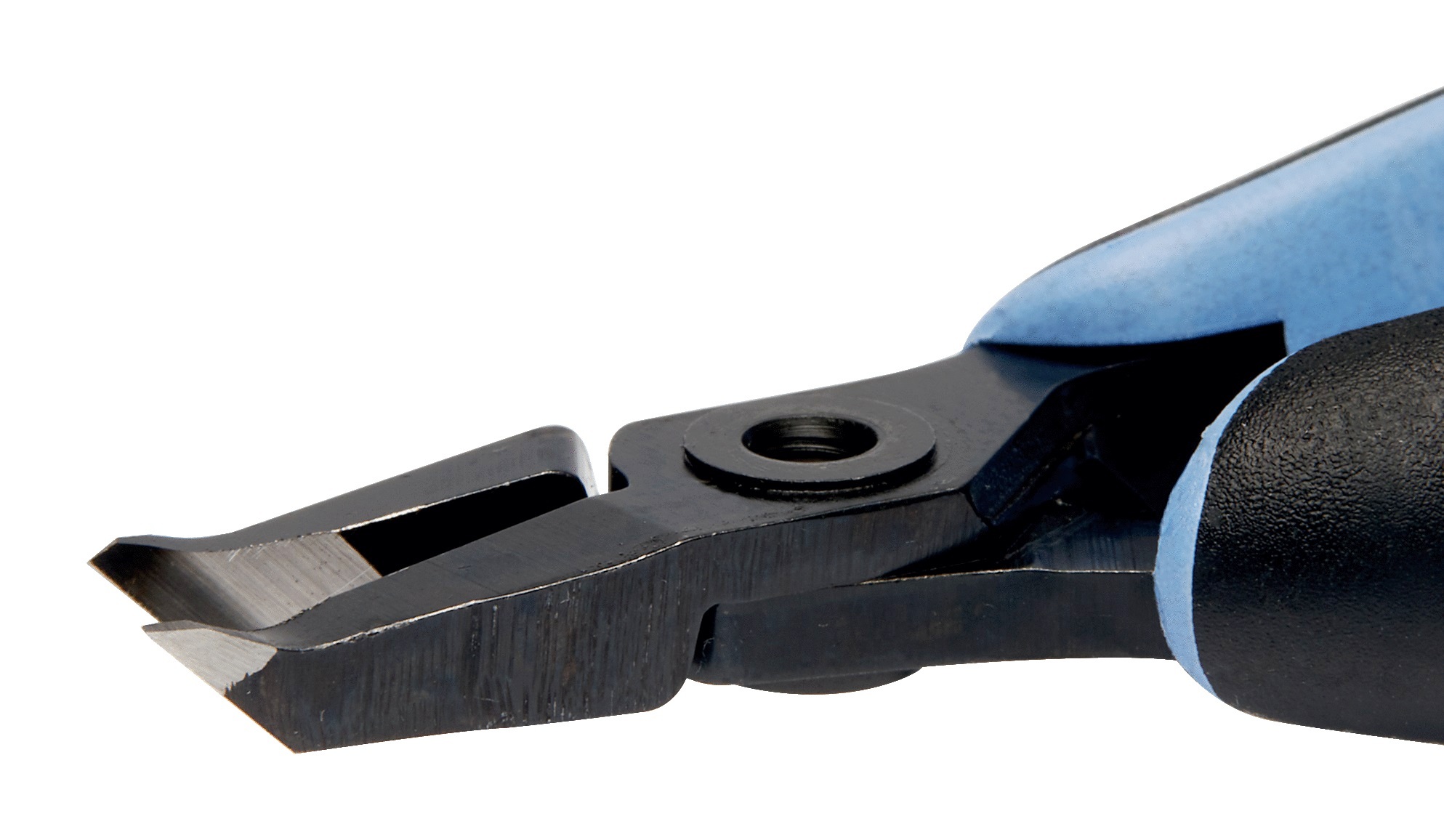

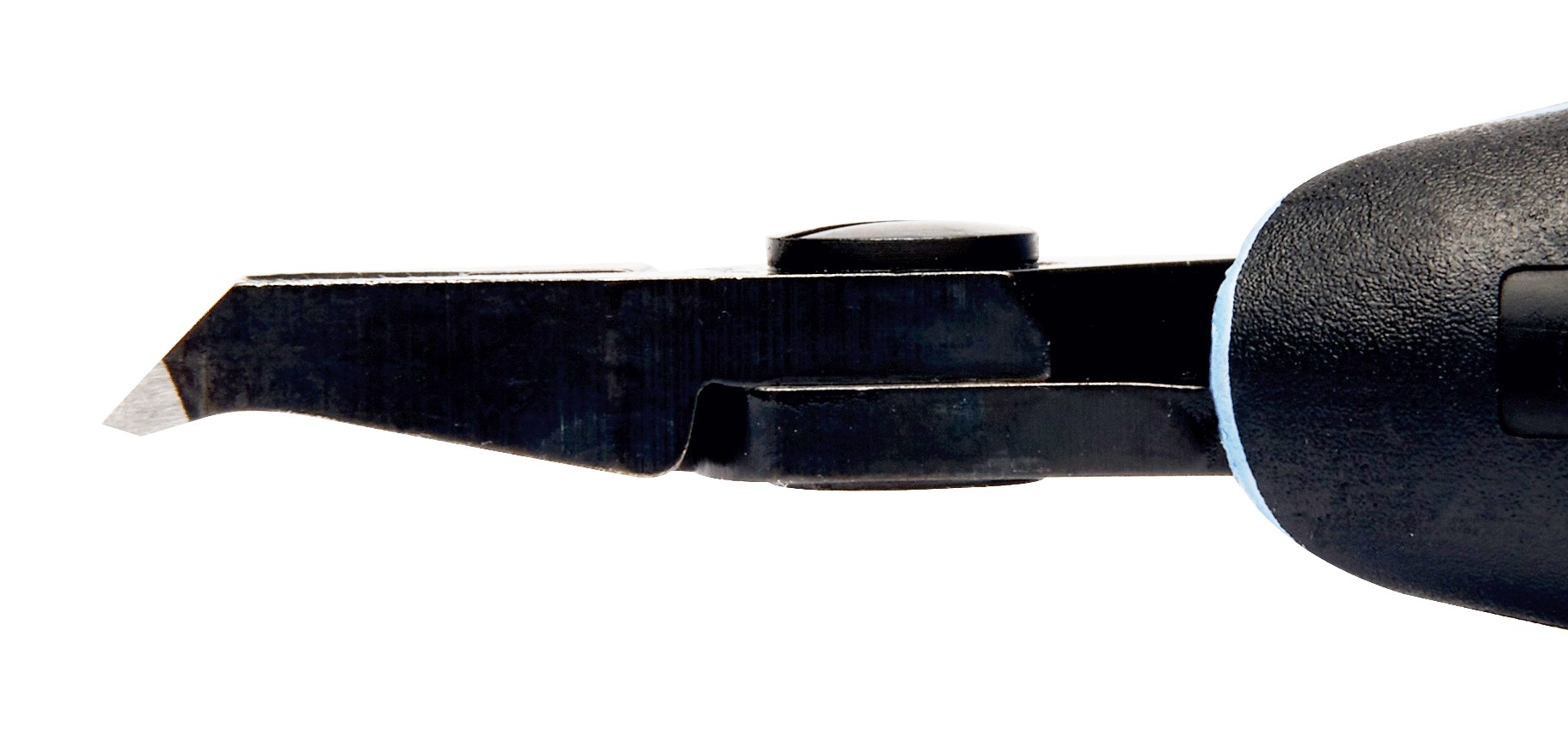

• 80 series oblique cutter 45° angle with Tapered Head

• ESD Safe handles have a thermoplastic surface, for comfortable grip, over a tough polypropylene core for rigidity

• “S” Spring can be adjusted to 3 different positions or removed

• Flush cut
• The cutting capacity given is for copper wire
• Suitable for cutting Cu
• High performance alloyed steel
• Non-Glare black burnished finish helps to alleviate operator fatigue
• Numerically controlled machine grinding guarantees edge angle accuracy & contact, increases the tools reliability & consistency
• Precision induction hardened edges 63-65 HRC

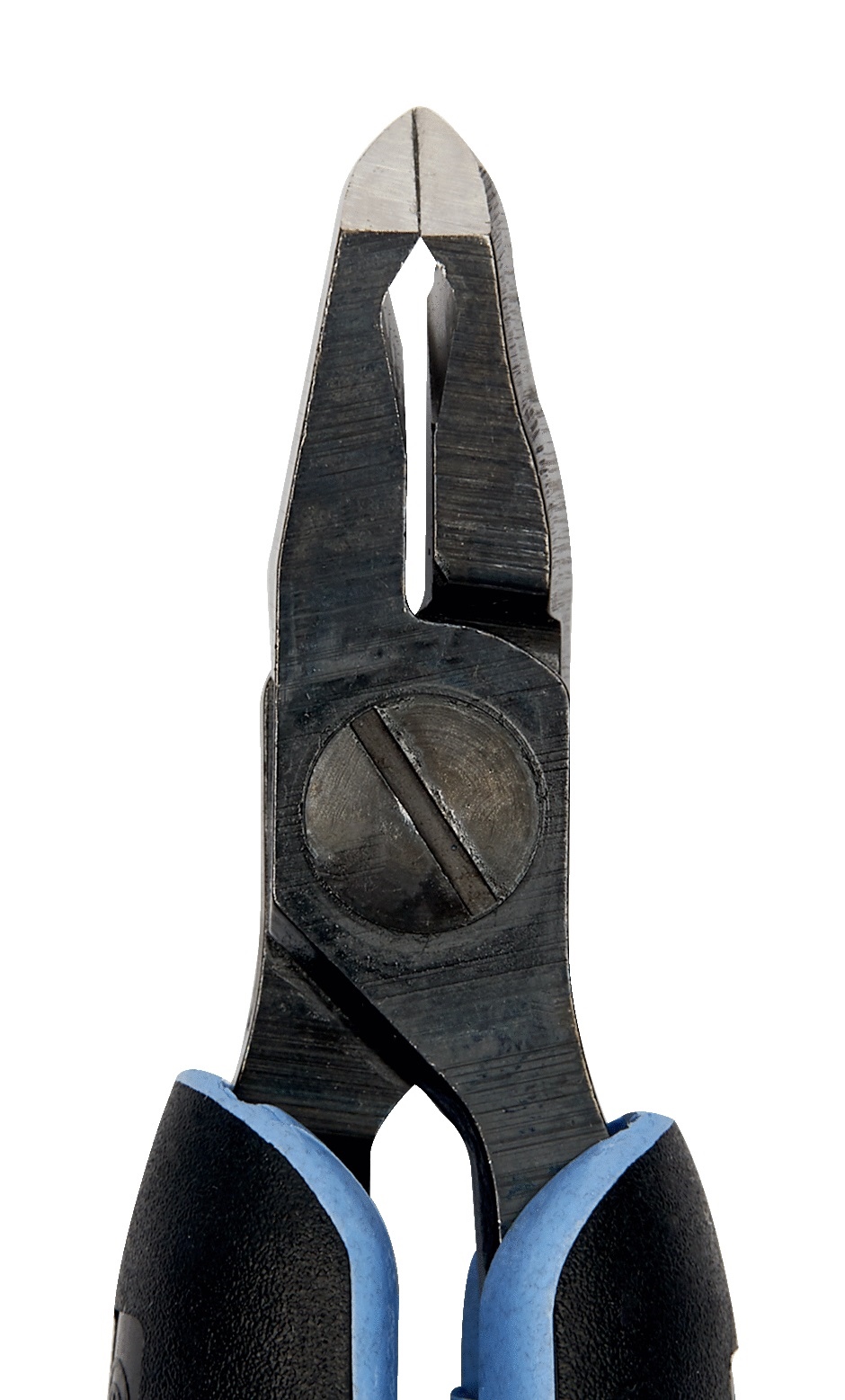

• Screw joint that minimizes friction & maximizes alignment of cutting edges
• Ideal for rework & close assembly needs

• Price Break: 10 pcs. (contact Concorde for pricing. Tel: 201-488-7474 • Email: info@concorde-electronics.com)

Specifications:

• See attachment for complete tool dimensions

• Length: 4-3/4″

• Jaw Length: .75″ (3/4″)

• Angle: 45°
