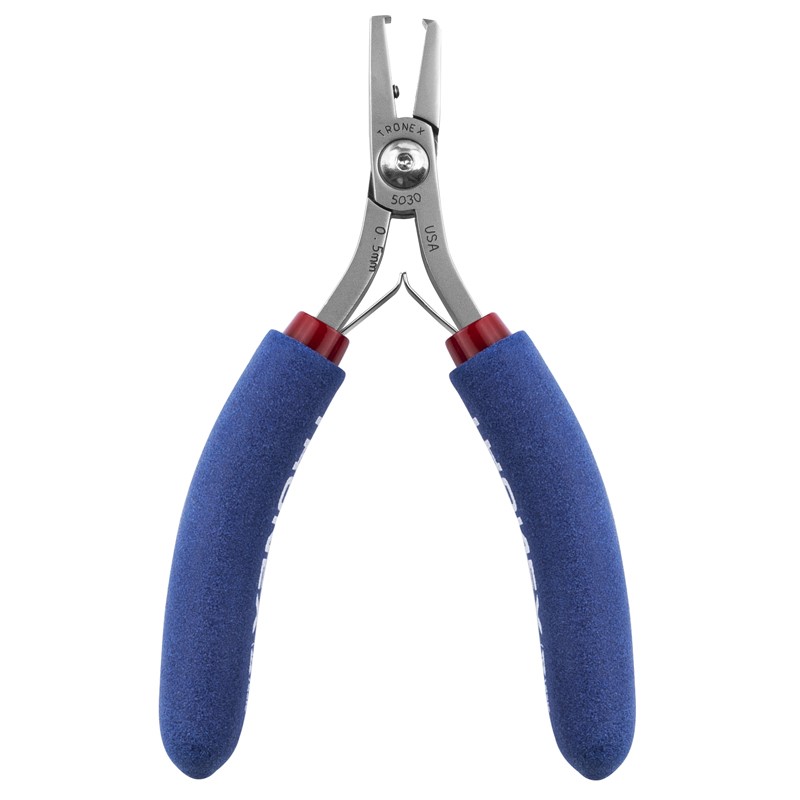

Tronex 5030

Razor-Flush® cutters, with cutting edges that come together like two razor blades, will cut wire or leads exceptionally flush without the “pinch” or beveled edge. Cut leads to predetermined length while reducing “shock” to components.  Choose a standoff length from 0.5mm – 3.0mm (.020″ – .120″). The standoff cutter length is clearly engraved on the handle of the tool for easy identification.

Features

• High-grade alloy steel for strength and durability
• Extra sharp cutting edges
• Exceptionally flush cut
• Cut leads to a predetermined length
• Cut fine wires in difficult-to-access areas
• Cut delicate component leads with less “shock”
• Precision ground for a sharper cutting edge and perfect alignment
• Induction hardened tips for a stronger cutting edge
• Fine, set screw keeps the cutting edge from dulling
• ESD-Safe blue double-sheathed cushion grips
• Non-protruding leaf spring will not “catch”
• Glare resistant, satin finish is easier on the eyes

Recommended Applications
• Electronics

Tronex 5030 Specifications
• Cutting capacity: soft copper wire 32-22 AWG |  008″ – .025″ (0.2mm – 0.64mm)
• Cutter angle: steep 90°
• StandOff length: Your choice. Select a size between .020″ – .120″ ( 0.5mm – 3.0mm)
• Overall length: 4.8″
• Option: Longer, ergonomic handle 7″ (Part No. 7030)
