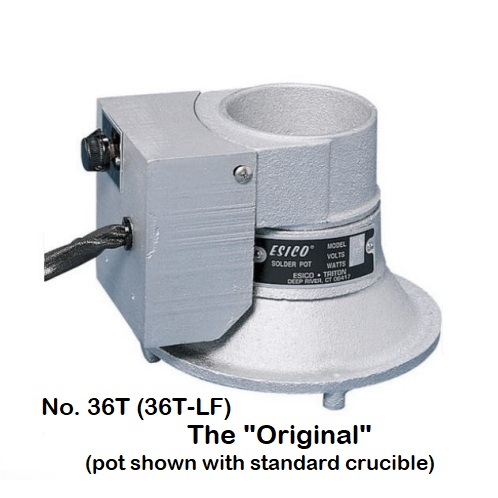

Esico-Triton #36T “The Original” Small Solder Pot with Temperature Control.   Unit features

an adjustable thermostat for selecting the optimum operating temperature.

Esico #36T “The Original” Features:

• Efficient and rapid method for tinning, stripping and dip soldering of individual small parts and wire leads

• Thermostat control for easy temperature adjustment

• Grey cast iron crucible is highly resistant to the corrosive nature of lead-free solders.

Ideally suited for lead free soldering applications

• Crucibles are thin-lipped for operator comfort, convenience, speed  . . . . and high volume production
• Made in the USA
• Esico-Triton is a division of American Beauty Tools
• Easy drop-ship from the Esico factory

Specifications:

• Esico-Triton Part No.: 36T (P360020)
• Temperature control for easy adjustment (from “off” to 625° F)
• Maximum temperature of 625º
• Solder capacity: 2-1/4 lbs.
• Dimensions: 2-1/2″ diameter x 1-3/4″ deep
• 250 watts

Optional replacement heating element: PE12T-36-36T

High Voltage 220-240v Options:
High Voltage option: No. 36T high voltage solder pot is available upon request. Call for pricing.

(Tel: 201-488-7474 • Email: info@concorde-electronics.com)
