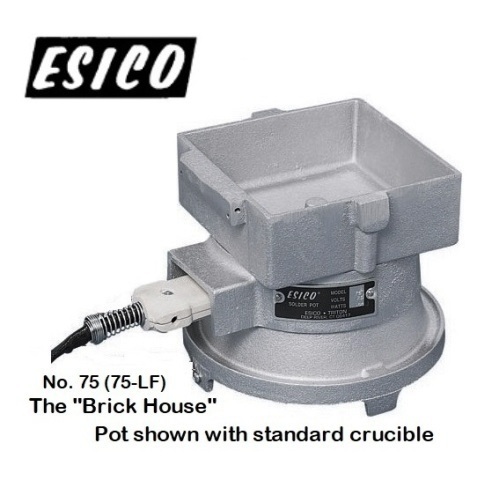

Esico-Triton #75 The “Brick-House” Large Square Solder Pot



 Esico #75 The “Brick House” Features:

• Ideal for short run and desoldering of through-hole printed circuit boards

• Grey cast iron crucible is highly resistant to the corrosive nature of lead-free solders.

Ideally suited to lead-free soldering applications.

• Crucibles are thin-lipped for operator convenience, comfort, speed . . . large volume production

• Made in the USA

• Esico-Triton is a division of the American Beauty Tools

• Easy drop ship from the Esico factory



Specifications:

• Esico-Triton Part No.: 75 (P7500)

• Maximum temperature: 750º F (399° C)
• Solder capacity: 11-3/4 lbs.
• Net volume: 20 oz.
• Dimensions: 4-3/4″ square x 1-3/4″ deep
• 650 watts
• RoHS Compliant



Optional Replacement Heating Element:  PE37-70-75



High Voltage 220-240v Options:
High Voltage option: No. 70T-LF high voltage solder pot is available upon request. Call for pricing

(Tel: 201-488-7474 • Email: info@concorde-electronics.com)
