Esico-Triton #75T-LF  The “Brick-House-LF” Large Lead-Free Solder Pot with Temperature Control

Large Square Adjustable Temperature Lead-Free Compatible Solder Pot is used extensively for short run soldering

and desoldering of thru-hole printed circuit boards.

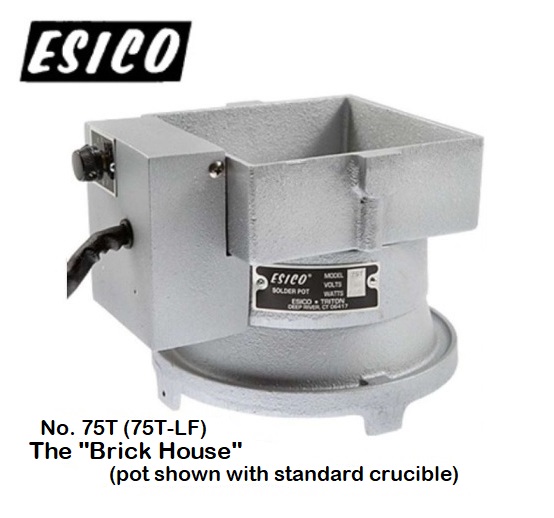

Representative Image (Item shown: #75T with standard crucible).



Features & Benefits:

• Ideal for short run soldering and desoldering of thru-hole printed circuit boards

• Ceramic coated cast iron crucible offers lead-free solder compatibility.

• Grey Cast Iron Ceramic Coated Crucible is highly resistant to the corrosive nature of

lead-free solders. Ideally suited to lead-free soldering applications.

• Unit features an adjustable thermostat for selecting the optimum operating temperature.

• Crucibles are thin-lipped for operator convenience, comfort and high-volume production

• Made in the USA
• Esico-Triton is a division of American Beauty Tools
• Easy drop-ship from the Esico factory



Specifications:

• Esico-Triton Part No.: 75T-LF (P750020)

• Maximum temperature: 650º
• Solder capacity: 11-3/4 lbs.
• Temperature control for easy adjustment.
• Dimensions: 4-3/4″ square x 1-3/4″ deep.
• 650 watts.
• RoHS Compliant



Optional  Replacement Heating Element:  PE-37-70-75



High Voltage 220-240v Options:
High Voltage option: No. 75T-LF high voltage solder pot is available upon request. Call for pricing.

(Tel: 201-488-7474 • Email: info@concorde-electronics.com)
